High Temperature Pressure Sensor | 150ºC | Pa600HT

At a Glance

Description

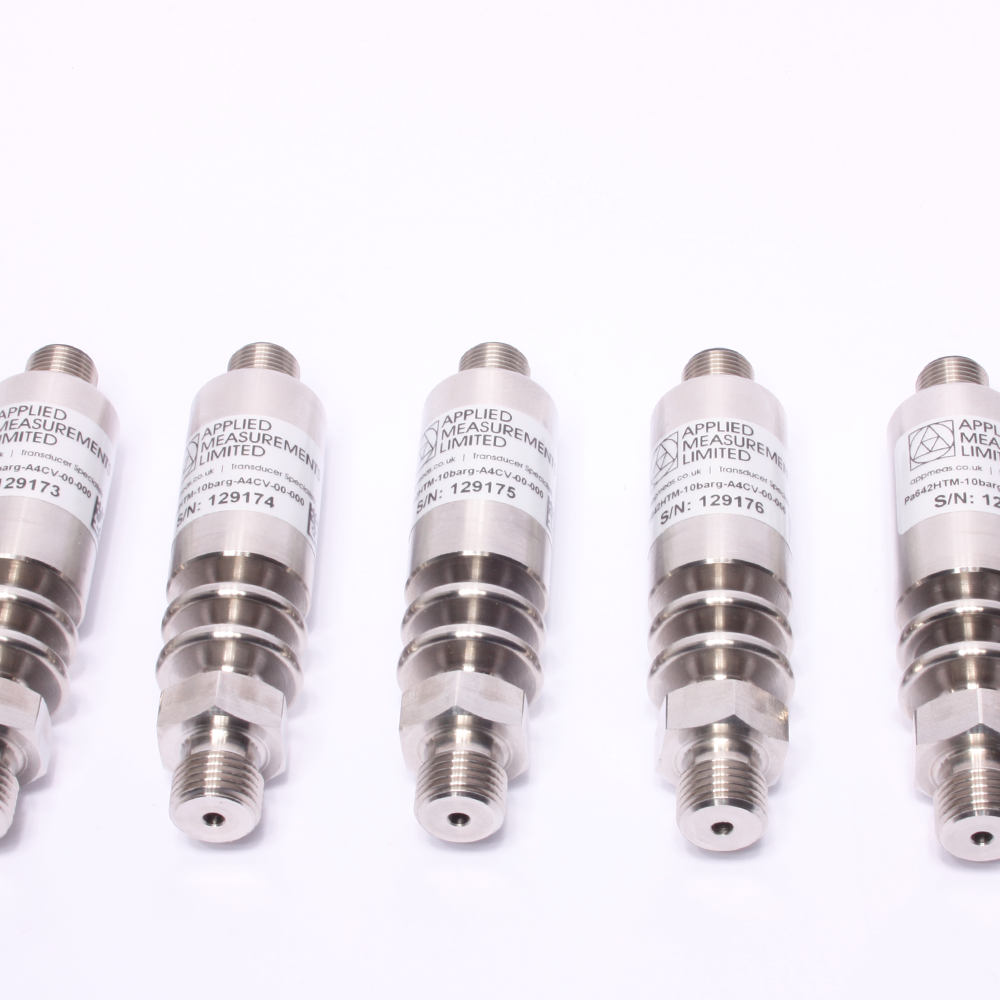

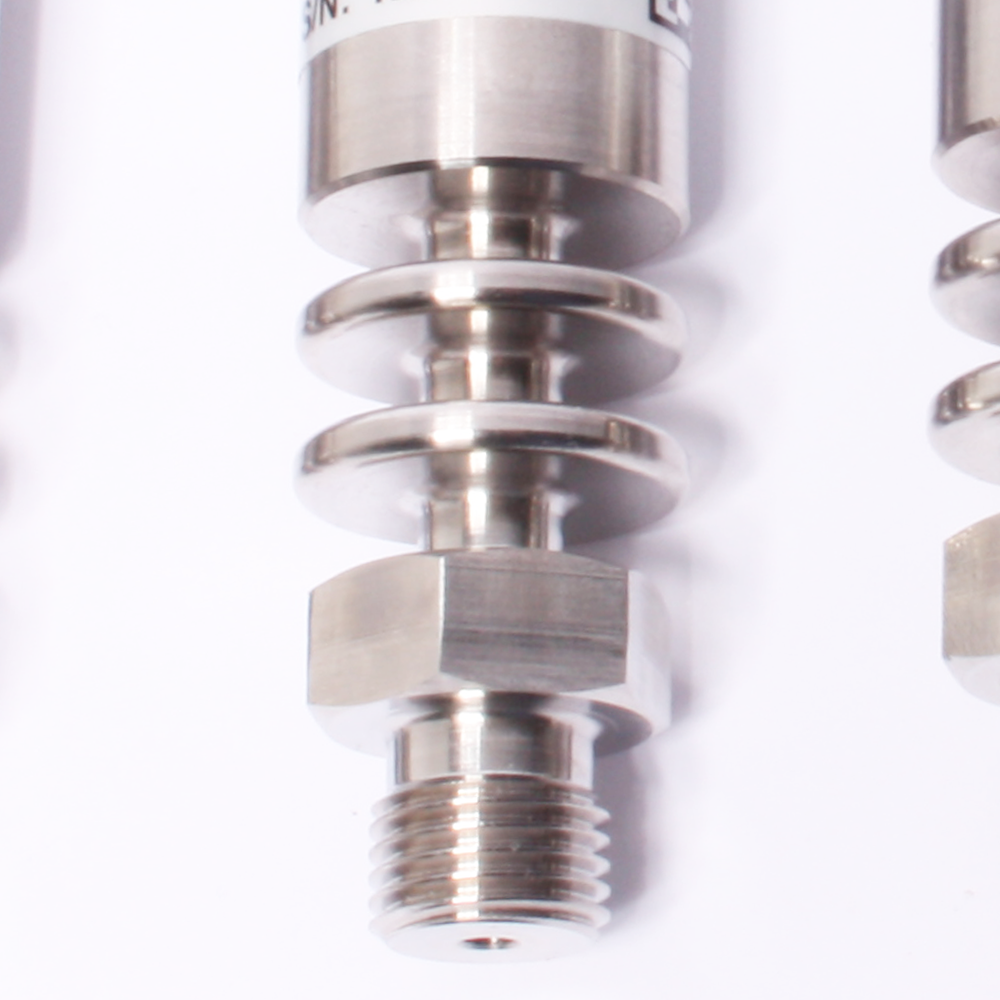

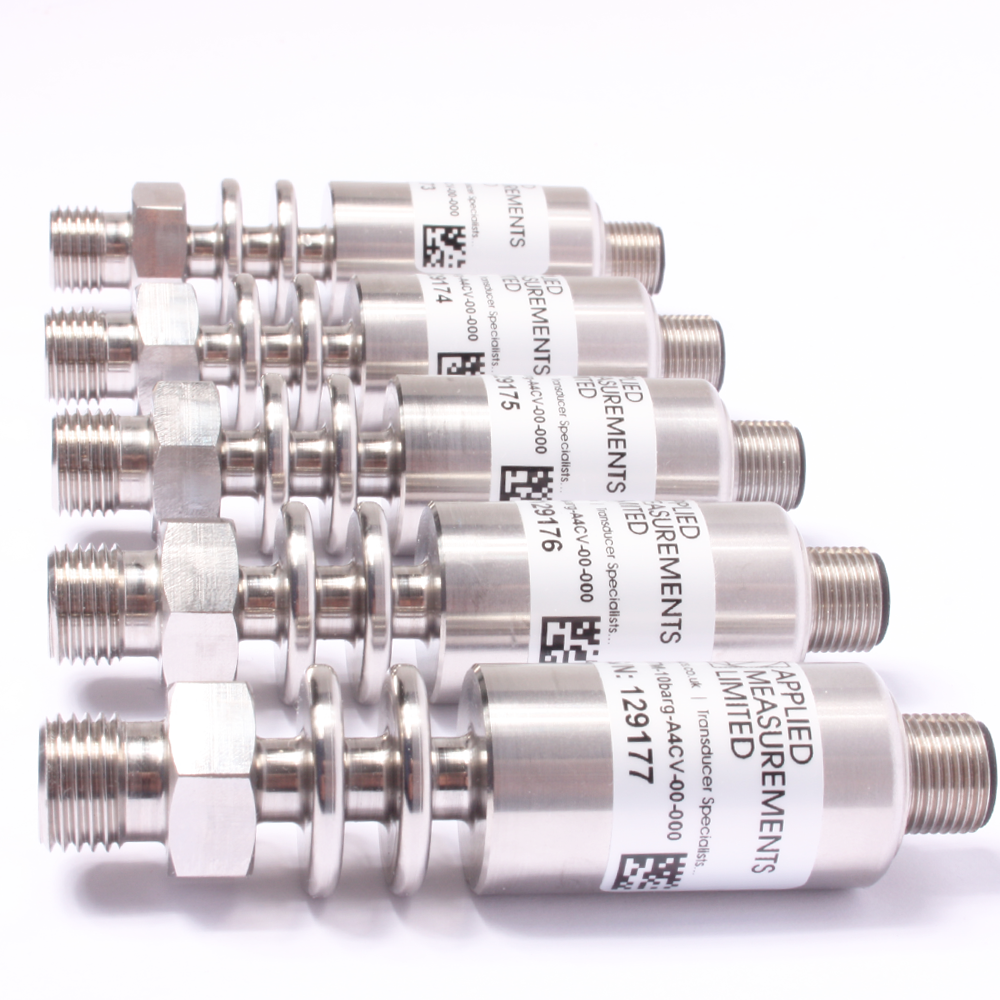

Applied Measurements Pa600HT high temperature pressure sensor is specifically designed to measure the pressure of hot gases and liquids.  The Pa600HT’s unique cooling coils effectively dissipate heat between the hot wetted media end and the pressure diaphragm located at the other end the cooling coils, in an ambient temperature environment.

The Pa600HT sensor housing is constructed from 303 stainless steel and utilises a ceramic sensing diaphragm (96% aluminium oxide Al2O3), a Viton O-ring and a G¼ inch male process connection as standard making it suitable for a multitude of common sensing applications.

Should you require a pressure sensor tailored to your specific pressure measurement application, we can design and manufacture fully-customised sensors for you – please contact our friendly sales team to discuss your requirement in detail. We can easily accommodate any requirement from a one-off to bulk orders for many thousands of sensors, all within our in-house, UK production facility.

A wide variety of outputs can be offered from Applied Measurements Pa600HT high temperature pressure sensor including 4-20mA, 0-5Vdc, 0-10Vdc, 10mV/V and 20mV/V.  It’s also available with a ratiometric 0.5-4.5Vdc signal (10% to 90% of supply voltage) that requires a 5Vdc regulated supply to suit most data loggers.

Applied Measurements has a range of precise instrumentation that can be used with the industrial pressure sensor to give you a complete calibrated pressure measurement system.

Technical Specifications

Input Pressure Range
Nominal Pressure Range	Bar (gauge, sealed gauge or absolute)	0-0.5	0-1	0-2	0-5	0-10	0-20	0-50	0-100	0-200	0-400
Compound Ranges	Bar	-0.5…0 *	-1…0 *	-1…+2 *	-1…+5	-1…+9	-1...+19	-1...+29	-	-	-
Permissible Overpressure	Bar	1	2	4	10	15	35	100	150	350	500
Burst Pressure	Bar	2	3	6	15	25	65	120	200	500	650
*<±0.1% / FS (BFSL) accuracy not possible in this range

Output Signal & Supply Voltage	Wiring System	Output	Supply Voltage	Input Current	Input Resistance	Output Resistance
Pa642HT	2 – wire	4 – 20 mA	9 – 32 Vdc	n/a	-	-
Pa605HT	3 - wire	0 – 5V dc	9 – 32 Vdc	<10 mA	-	1000Ω ±10%
Pa6010HT	3 - wire	0 – 10V dc	13 – 32 Vdc	<10 mA	-	1000Ω ±10%
Pa645HT	3 - wire	0.5 to 4.5V dc	5 Vdc (2.7 - 5.5Vdc)	<3 mA	-	500Ω ±10%
Pa602HT	4 - wire	Passive mV/V (un-rationalised)	2 – 30 Vdc	<1 mA @ 10V	11kΩ ±30%	11kΩ ±30%
Pa607HT	4 – wire	2mV/V (rationalised)	2 – 30 Vdc	<1 mA @ 10V	11kΩ ±30%	11kΩ ±30%
Pa610HT	4 - wire	10mV/V (amplified)	3 – 12 Vdc	<3 mA typ.	<11000	<2000 nom.
Pa620HT	4 - wire	20mV/V (amplified)	3 – 12 Vdc	<3 mA typ.	<11000	<2000 nom.

Performance
Accuracy (non-linearity, hysteresis, repeatability)	±%/Rated Output (BFSL)	<±0.25 <±0.1 optional
Setting Errors (Zero Balance + Full Scale Output)	2-wire, 3-wire 4-wire rationalised 4-wire un-rationalised	Zero <±1% / FS, Span <±0.5% / FS Zero <0.2mV/V, Span ±1% / FS Zero N/A, Span ±30%
Permissible Load	2-wire 3-wire 4-wire	Rmax = [(VS - VS min) / 0.02] Ω Rmin = 10 kΩ Rmin = 11kΩ
Influence Effects	Supply Effects Load Effect	mV/V & 0.5 to 4.5V – Ratiometric, Other Voltage Outputs - <0.005 % FS / 1V 4 - 20mA = <0.05% FSO / kΩ
Response Time (10% - 90%)	ms	≤1 (mV/V versions) ≤10 (amplified versions)
Warm-Up Time (amplified versions only)	ms	2 typ.
Permissible Temperatures & Thermal Effects
Media Temperature	˚C	-40 to +150
Ambient Temperature	˚C	-20 to +85
Storage Temperature	˚C	-20 to +85
Compensated Temperature Range	˚C	+20 to +80
Thermal Zero Shift (TZS)	% / FS / ˚C	<±0.04 (standard) <±0.02 (option) <±0.01 (option)
Thermal Span Shift (TSS)	% output / ˚C	<±0.015 typical
Electrical Protection
Reverse Polarity Protection		No damage but also no function
Electromagnetic Compatibility		CE Compliant
Insulation Resistance	Megohms Ω at 50V dc	>500
Mechanical Stability
Shock		100 g / 11 ms
Vibration		10 g RMS (20 ... 2000 Hz)
Materials
Housing & Process Connection		303 Stainless Steel
‘O’ ring Seals		Viton
Diaphragm		Ceramic Al2O3 96%
Media Wetted Parts		Process connection, ‘O’ ring seal, diaphragm
Misc
Weight	grams	100 nominal
Installation Position		Any
Operational Life	pressure cycles	>100 x 10^6
Environmental Protection	Mini Plug + Socket M12x1 Connector Cable Gland	IP65 IP67 (note: mating half must be IP67-rated as well) IP65

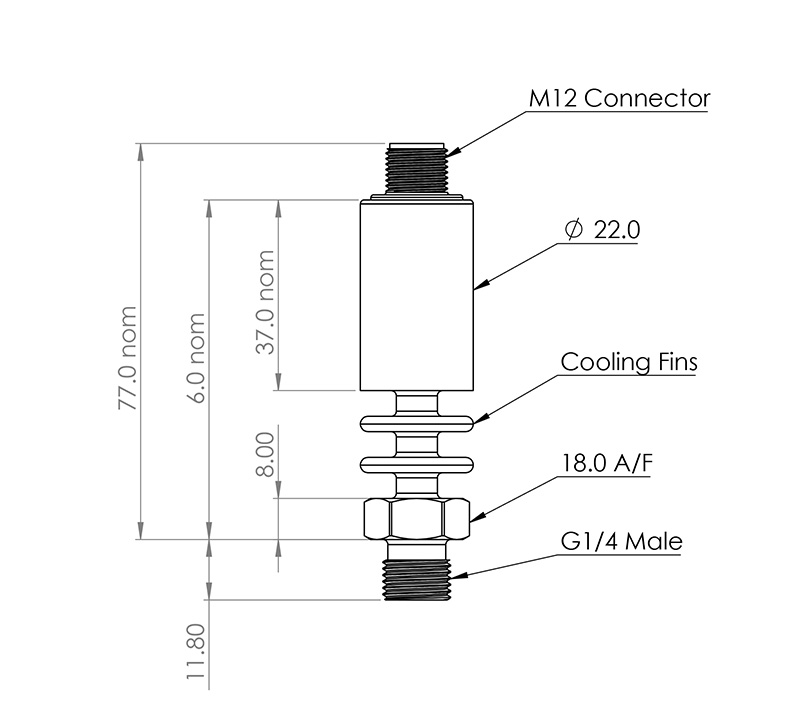

Product Dimensions

Wiring Details

		Small Plug & Socket (suitable for cable diameter 4.5mm to 6mm)	IP65 Cable	M12 x 1, 4-pin Connector
2-wire	+ve Supply -ve Supply Ground	Pin 1 Pin 2 Earth Pin	Red Blue Yellow	Pin 1 Pin 2 Pin 4
3-wire	+ve Supply -ve Supply +ve Output Ground	Pin 1 Pin 2 Pin 3 Earth Pin	Red Blue Green Yellow	Pin 1 Pin 2 Pin 3 Pin 4
4-wire	+ve Supply -ve Supply +ve Output -ve Output	Pin 1 Pin 2 Pin 3 Earth Pin	Red Blue Green Yellow	Pin 1 Pin 2 Pin 3 Pin 4

Ordering Codes & Options

Pa642HTM-10barg-A4AV-00-000 (example code)	Pa6	42HT	M	-	10barg	-	A	4	A	V	-	00	-	000
Product Family
Pa6 Series Pressure Sensor	Pa6
Electrical Output
2mV/V		07HT
10mV/V		10HT
20mV/V		20HT
4-20mA (2-wire)		42HT
0.5-4.5Vdc ratiometric (5V excitation)		45HT
0-5Vdc		05HT
0-10Vdc		010HT
Electrical Connection
Mini DIN Plug & Socket (suitable for cable diameter 4.5mm to 6mm)			P
IP65 Cable Gland + Screened, Un-Vented PVC Cable			C
M12x1 4-pin Connector			M
M12x1 4-pin Connector + Mating Half			MM
Pressure Range
0-0.5bar				-	0.5barg	-
0-1bar				-	1barg	-
0-2bar				-	2barg	-
0-5bar				-	5barg	-
0-10bar				-	10barg	-
0-20bar				-	20barg	-
0-50bar				-	50barg	-
0-100bar				-	100barg	-
0-250bar				-	250barg	-
0-400bar				-	400barg	-
Accuracy (Non-Linearity & Hysteresis)
<±0.25%/FS (standard)							A
<±0.1%/FS							B
Zero Temperature Compensation (TZS)
<±0.04%/FS/ºC								4
<±0.02%/FS/ºC								2
<±0.01%/FS/ºC								1
Process Connection
G¼” Male DIN 3852 in 303 St/Steel									A
O-Ring Material
Viton (FKM)										V
Cable Length (in metres)
None											-	00	-
1 metre											-	01	-
5 metre											-	05	-
Specials Code
No Special Requirements														000
