Fully Submersible, Compact & Ideal for Drinking Water Systems
Typical Lead Time
6 weeks
Prices From
£470
(excl. VAT)
Accelerated delivery available
Quantity, OEM & educational discounts
At a Glance
- 26.5mm Diameter
- Ranges: 0-1mH20 up to 0-250mH20
- Small Thermal Effect
- Outputs: 4-20mA, 0-20mA, 0-10V
- Environmental Protection: IP68 Fully Submersible
- Accuracy: <0.1 % / <0.25 % / <0.35 % FSO
- Very Compact Only 26.5mm Diameter
- Ideal for Drinking Water Systems, Pump and Booster Stations
- Suitable for Water, Wastewater & Leachate Applications
- For Use in Fuels and Oils, or Water
- Fully Submersible for Long-Term Immersion
- Excellent Long-Term Stability
- IS and Ex ia Versions Optional for Fuel Storage & Tank Farms
- Drinking Water Certificate Optional
Description

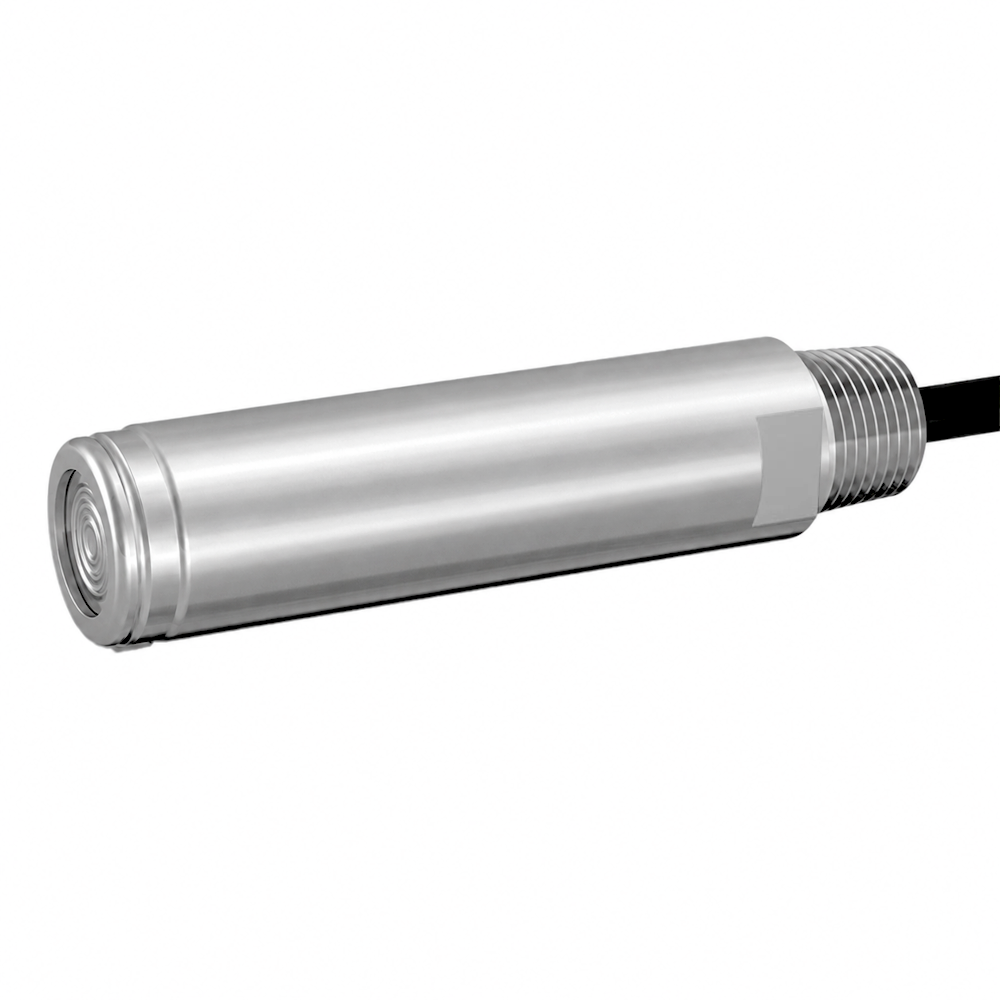

The LMP307 water tank level sensor is only 26.5mm in diameter, making it perfect for water tank level measurements in water treatment and recycling plants. It is designed specifically for use in water and clean or lightly polluted fluids.
It is constructed of high-quality stainless steel offering good long term stability.
The water tank level sensor is also ideal for:
- Drinking Water Systems (drinking water certificate to DVGW & KTW optional)
- Ground Level Water Measurements
- Rain Spillway Basins
- Pump & Booster Stations
- Water Level Measurement in Containers
- Water Treatment & Water Recycling Plants
IS-versions and Ex ia = intrinsically safe for gas and dust versions are available for fuel storage and tank farms.
If you require a level sensor with an even smaller diameter, try our borehole water level sensor at Ø19mm.
Technical Specifications
Product Dimensions
The total length of devices with accuracy of 0.1 % FSO IEC 60770 increases by 35 mm
Dimensions are given in mm and in.
V01.04.2022
Last updated: 16th June 2026
Due to our policy on ongoing development, dimensions and specifications may change without notice.
Due to our policy on ongoing development, dimensions and specifications may change without notice.
