Submersible Slimline Linear Position Sensor | LS19

At a Glance

Description

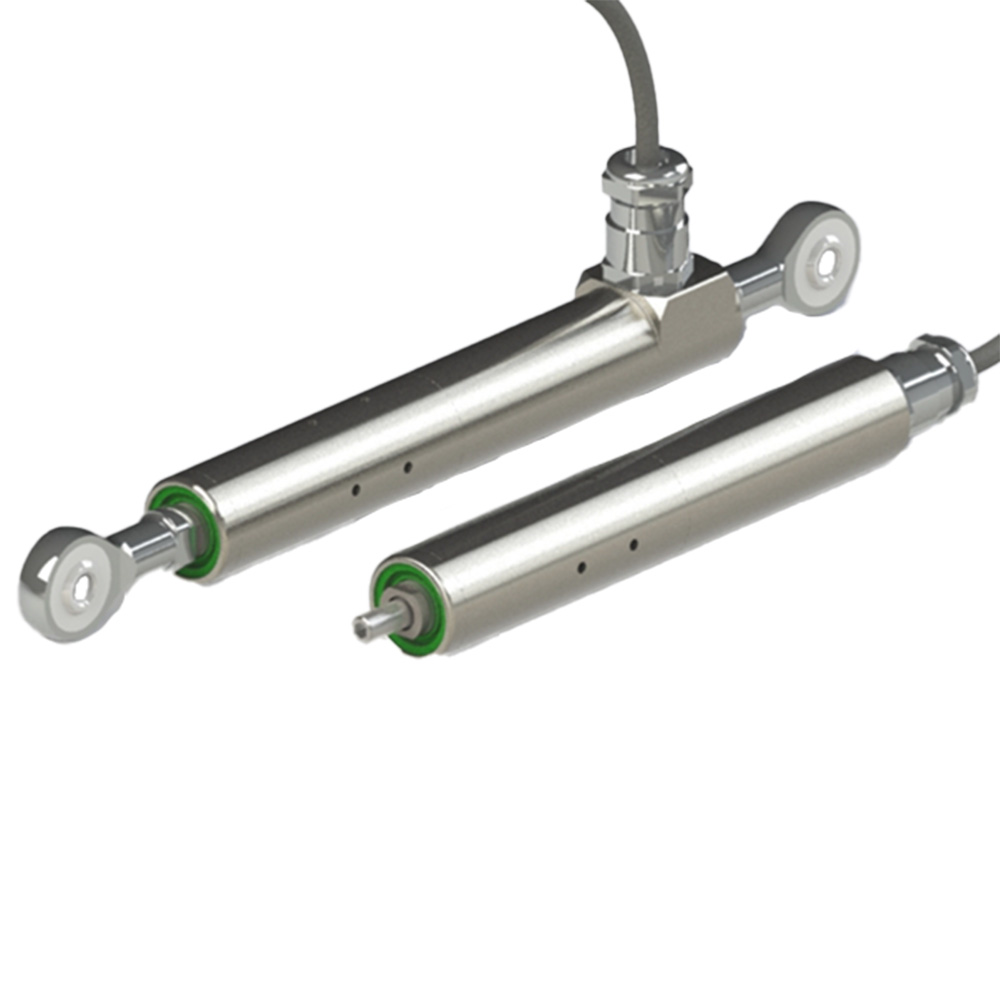

The LS19 Submersible Slim-Line Linear Position Sensor has been specifically designed for marine applications that require a narrow bodied, waterproof and corrosion resistant position sensor. Exquisitely engineered, the sensor is rated to operate down to a 100m (10bar) depth. When combined with the non-wearing inductive technology, the LS19 will deliver reliable performance for many years.

The non-wearing inductive technology used in the LS19 is a major advance in displacement sensor design. This transducer has the simplicity of a potentiometer with the life of an LVDT. The LS19 sensor outputs a stable DC analogue signal by using simple inductive coils in conjunction with advanced ASIC control technology. Because there is no contact between moving electrical components, reliability is high and wear is eliminated for an exceptionally long life. It also overcomes the drawbacks of LVDT technology that typically include; bulky coils, poor length-to-stroke ratios, separate signal conditioning requirements and the need for special magnetic materials.

The LS19 provides a linear output proportional to travel. Each unit is supplied with the output calibrated to the travel required by the customer, any stroke from 0-5mm to 0-350mm can be specified during the order process. The default accuracy of the LS19 is 0.25% FSO, however if you would like a greater accuracy of 0.1% FSO, for stroke ranges greater then 10mm, then this can be specified during the ordering process too.

The sensor is very robust, the body and push rod being made of stainless steel for long service life and environmental resistance. It is particularly suitable for OEMs seeking good sensor performance for arduous applications such as industrial machinery where cost and reliability is important.

Overall performance, repeatability and stability are outstanding over a wide temperature range. The sensor is easy to install with mounting options including M5 rod eye bearings and body clamps. The push rod by default is supplied, free or captive, with female M5x0.8×10 deep thread. Alternatively, M5 rod eyes and magnetic tip options are available too. Captive push rods can be sprung loaded, in either direction. The LS19 also offers a wide range of mechanical and electrical options and is IP68 to 10bar / IP69K rated. The ability for the LS19 to remain unaffected by external Electrical Magnetic interference is assured by the built in EMC protection that conforms to EN 61000-6-2 and EN 61000-6-3 standards.

Common applications for the Applied Measurements LS19 position sensor include geotechnical testing, marine research, offshore structures and oil & gas activities.

Applied Measurements can supply a wide variety of instrumentation to complement your LS01 position sensor, such as wireless transmitters and receivers, digital displays and amplifiers.

Technical Specifications

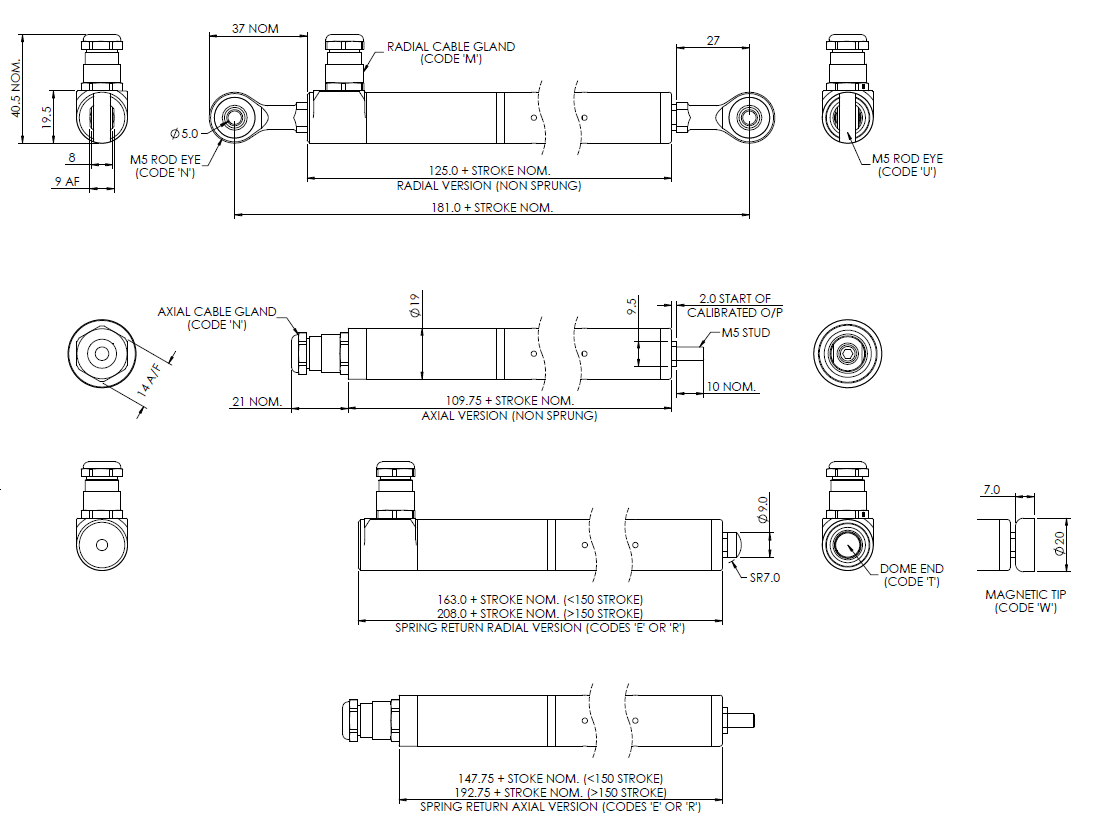

Product Dimensions

Electrical Output Options

Output Option Code	Output Type	Supply Voltages	Load resistance
A	0.5 - 4.5Vdc (ratiometric with supply)	+5Vdc (4.5 - 5.5V)	≥5kΩ
C	0.5-9.5Vdc	+24Vdc nom. (13 - 28V)	≥5kΩ
G	0.5-4.5Vdc	+24Vdc nom. (9 - 28V)	≥5kΩ
H	4-20mA (3-wire source)	+24Vdc nom. (13 - 28V)	≈ 0 - 300Ω max. ~ 1.2 to 6V across 300Ω

Wiring Details

Mechanical Mounting

Depending on options; Body can be mounted by M5x0.8 male thread, rod eye or by clamping the sensor body – body clamps are available, if not already ordered. Target by M5x0.8 male thread, rod eye or magnetic tip. It is assumed that the sensor and target mounting points share a common earth.

Where the free end of the cable is to be terminated in a submerged position, adequate sealing must be provided to protect connections.

Output Characteristic

Target is extended 2 mm from end of body at start of normal travel. The output increases as the target extends from the sensor body, the calibrated stroke is between 5 mm and 350mm.

WARNINGS
A	Not protected – the sensor is NOT protected against either reverse polarity or over-voltage. The risk of damage should be minimal where the supply current is limited to less than 50mA.
C & G	Supply leads diode protected. Output must not be taken outside 0 to 12V.
H	Supply and output lead diode protected. Do take output negative of 0 volts.

V05.04.2024

Ordering Codes & Options

Example code	LS19	A	-	350	-	L	A	-	0	0	U	N	-		Z	-	000
Product Family
LS19	LS19
Electrical Output
0.5-4.5Vdc (ratiometric with supply)		A
0.5-9.5Vdc		C
0.5-4.5Vdc		G
4-20mA (3-wire source)		H
			-
Displacement
From 5mm to 350mm, in 1mm steps				XXX
					-
Electrical Connection
Radial Cable Gland (IP68 to 10bar/100m)						M
Axial Cable Gland (IP68 to 10 bar/100m)						N
Cable Length
No cable							0
1m							A
2m							B
3m							C
5m							D
10m							E
15m							F
20m							G
								-
Body Fittings
None (standard)									0
M5 Rod-End Bearing (with radial electrical connection only)									N
Push Rod
Not Sprung (standard)										0
Spring Extend										E
Spring Retract										R
Push Rod Fittings
M5 Male Thread (standard)											0
Dome End (available with spring extend option 'E' only)											T
M5 Rod-End Bearing											U
Magnetic Tip											W
Push Rod
Captive/Retained (standard)												N
Non-Captive (can depart body - not available on sprung options)												V
													-
Output Polarity Calibration
Standard														0
Reversed														R
Accuracy @ 20ºC
Standard Non-Linearity															0
Improved Non-Linearity: ≤±0.1%/FSO (0-10mm ranges and higher only)															Z
																-
Special Code
No Special Requirements																	000
Technical Sales will provide specials codes as required																	XXX

ACCESSORIES

The black polyamide 19mm body clamp fits the LS19 perfectly and is an essential accessory if you need to mechanically grip the body of the displacement sensor and secure both to an external structure e.g. test rig. The BP352 is designed to be secured by 2 x M6 Fixings (not supplied).
