    Single-Ended Shear Beam Load Cell | OSBKT

    The Accurate, Low Cost and Robust Weight Measurement Option

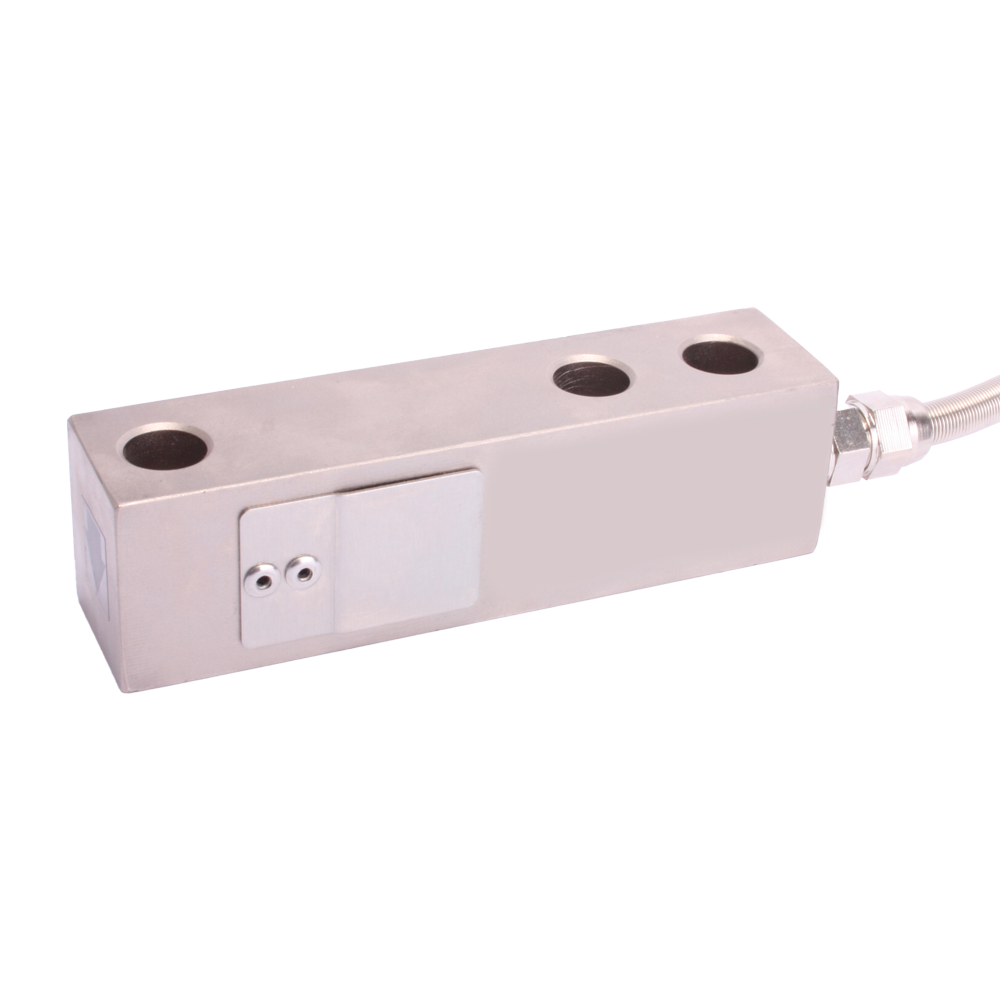

    OSBKT Shear Beam Load Cell
    Lead Time
    1 - 2 weeks
    Prices From
    £143
    (excl. VAT)
    Accelerated delivery available
    Customizable
    Quantity, OEM & educational discounts

    At a Glance

    • Capacities: 0-250kg up to 0-2000kg
    • Output: 2mV/V
    • Environmental Protection: IP67
    • High Accuracy: <±0.025%/RC
    • Optional Mounting Accessories
    • Optional ATEX (EEx ia IIC T6)
    • Optimum Accuracy Guaranteed with Shock or Vessel Mounts
    • Ideal for Harsh Industrial Environments – Immersion Protected to 1m to up to 30 mins
    • Optimise Signal Integrity and Reduce Noise – With our Integrated Signal Conditioning Options
    • Low Cost for Price Sensitive Applications
    • ATEX (EEx ia IIC T6) Hazardous Area Approvals Available

    Description

    Applied Measurements OSBKT single-ended shear beam load cell is suitable for medium capacity weighing applications such as hoppers and vessels where a highly accurate measurement system is required.  They are also suitable for conveyor weighing applications.

    The OSBKT single-ended shear beam load cell’s high integrity IP67 body and alloy steel construction make it ideal for general purpose industrial weighing applications where low-cost is a primary consideration.

    Two mounting assemblies are available to suit the OSBKT single ended shear beam load cell; the Vessel Mount for static applications and the Shock / Anti-Vibration Mount for mixer, feed hopper and conveyor applications where vibration or transient loads may occur.  For mount dimensions, please download the datasheet.

    For hazardous environments, our OSBKT single-ended shear beam load is available with ATEX (EEx ia IIC T6) hazardous area approvals.

    Technical Specifications

    OSBKTOSBSTUNITS
    Rated Capacity (RC)0-250, 0-500, 0-1000, 0-20000-500, 0-1000, 0-2000, 0-5000kgf
    Operating ModesCompression Only
    Sensitivity (RO)2.0 ±0.1%mV/V
    Zero Balance/Offset<2.0±%/Rated Output
    Zero Return after 30 mins.<0.025±%/Rated Capacity
    Accuracy<0.020±%/Rated Capacity
    Temperature Effect on Zero<0.0023±%/Rated Output/ ˚C
    Temperature Effect on Sensitivity<0.0010±%/Applied Load/ ˚C
    Input Resistance380 nominalOhms
    Output Resistance350 nominalOhms
    Insulation Resistance>2000@50VdcMegohms
    Excitation Voltage10 recommended (2-15 acceptable)Volts AC or DC
    Operating Temperature Range-20 to +70˚C
    Compensated Temperature Range-10 to +40˚C
    Storage Temperature Range-20 to +70˚C
    Safe Overload150% of Rated Capacity
    Ultimate Overload300% of Rated Capacity
    Deflection @ Rated Load<0.4mm
    IP Rating (Environmental Protection)IP67IP68
    Weight (excluding cable)0.9 (250kg, 500kg & 1000kg), 1.1 (2000kg), 2.1 (5000kg)0.9 (500kg, 1000kg & 2000kg), 1.9 (5000kg)kg
    Fatigue Life108 cycles typical (109 cycles on fatigue-rated version)
    Cable Length (as standard)35metres
    Cable Type6 core screened, PUR sheath, Ø6mm
    ConstructionNickel Plated Alloy SteelStainless Steel

    Product Dimensions

    OSBKT Single-Ended Shear Beam Load Cell Outline Drawing
    Model
    Capacity (kg)
    A
    B
    C
    D
    E
    F
    G
    ØJ
    K
    ØL
    M
    OSBKT
    250, 500, 1000
    130
    25.4
    76.2
    30.5
    30.5
    16
    19
    13.5
    M12 x 1.75
    13.5
    16
    OSBKT
    2000
    130
    25.4
    76.2
    30.5
    36
    16
    19
    13.5
    M12 x 1.75
    13.5
    16

    All dimensions are in mm

    Wiring Details

    WireDesignation
    Red+ve excitation
    Black-ve excitation
    Green+ve signal
    White-ve signal
    Blue+ve sense
    Brown-ve sense
    YellowCable Screen - to ground – not connected to load cell body

    Ordering Codes & Options

    Core ProductCapacity (inc Engineering Units)Cable Length (m)Specials CodeExample Result
    OSBKT250kg003000OSBKT-250kg-003-000
    OSBKT500kg003000OSBKT-500kg-003-000
    OSBKT1000kg003000OSBKT-1000kg-003-000
    OSBKT2000kg003000OSBKT-2000kg-003-000

    Mounting Accessories

    VESSEL MOUNT ASSEMBLY

    • Simple to Install Into New or Existing Installations.
    • Can be Installed With or Without the Load Cells in Position
    • Stainless Steel Construction
    • Easy Lifting and Removal of Load Cell
    • Rugged Construction
    • Reduces Installation Time
    • Permanent Integral Safety Vessel Jacking System for your Vessel
    • Anti-Lift Mechanism for Greater Vessel Stability
    • Maximum Safety Protection from the Effects of Wind or Accidental Collision are Built-In.
    • Heavy Duty Earth Straps Ensure that no Potential Difference Between the Upper and Lower Plates Occurs.
    • Low Resistance Path Assists in Removing Strong Welding Currents.
    • Substantial Protection Plate is Positioned Above the Cable Outlet to Prevent Damage by Falling Objects or Misuse.
    Load Cell Vessel Mount Outline Drawing
    MODELOSBKT & OSBST 500-2000kgOSBKT & OSBST 5000kg
    A100135
    B108143
    C110153
    D5147
    E165216
    F1520
    G1419.8
    H130162
    I2031.5
    J7090
    K2429
    L1520
    MM16M16
    N7090
    O2031.5
    P2429
    Q111159

    SHOCK MOUNT ASSEMBLY

    • Enables Weighing when a Vessel or Hopper is Subjected to External Forces
    • Plated Steel Construction
    • Minimises the Effects of Vibration
    • Ease of Assembly Reduces Installation Time
    • Complete Assembly is Supplied
    OSB-SHOCK-MOUNTS
    MODELOSBKT & OSBST 500-2000kg
    A146
    B110
    C70
    D24
    E130
    F165
    G20
    H14
    I20
    L220
    M180
    N146
    O24
    P26
    Q18
    R106
    S30
