At a Glance
- Primary Capacities: 0-0.1Nm to 0-1500Nm
- ±10Vdc Output
- Non-Linearity: <±0.1%/Rated Capacity
- Max Speed: 1900 to 20,000rpm (depending on capacity)
- Specially Designed Couplings
- Optional Speed & Angle Outputs
- Maintenance Free Thanks to its Non-Contact Technology
- Immersion Protected up to 1 metre for 30 mins
- Ideal for Humid and Dusty Environments
- Optimum Performance Delivered – Its Integrated Signal Amplifier Reduces Signal Interference
- Fast and Simple Installation with Specially Designed Couplings
Description

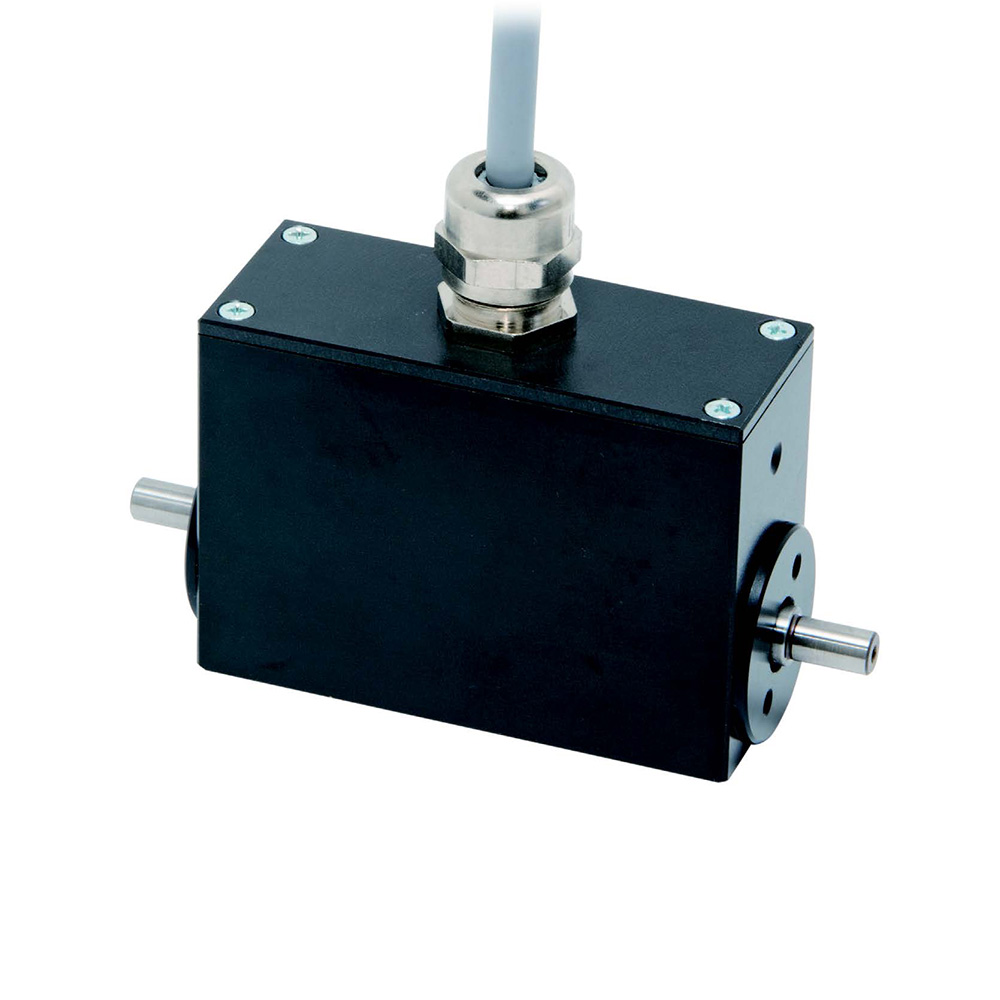

The DRWPL waterproof torque sensor series manufactured by ETH Messtechnik in Germany are rated to IP67 and have been specially designed for operation in harsh environments. They will operate happily where dust, water and high humidity are present constantly, and will even withstand short-term immersion to less than 1 metre depth for 30 minutes maximum.
A ±10Vdc analogue output is provided from DRWPL’s internal signal conditioner which offers a 200Hz frequency response. Pulsed speed and angle output options are also available.
Customised couplings can be offered with the DRWPL waterproof torque sensor to ensure straightforward integration into your application along with optimum performance.
Technical Specifications

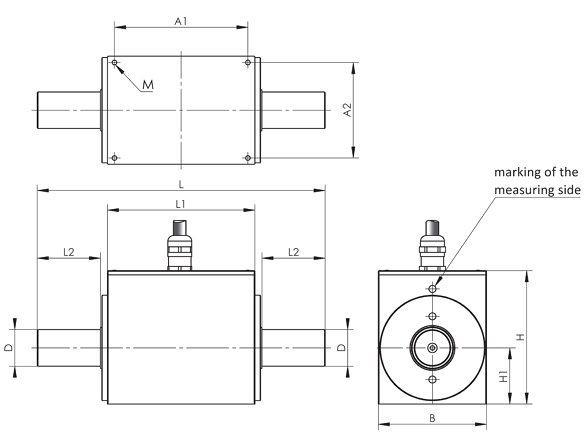

Product Dimensions
| Model/Capacity (Nm) | L | L1 | L2 | L3 | B | H | H1 | ØD1 g6 | ØD2 g6 | A1 | A2 | M | RPM max |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DRWPL-I / 0.1, 0.2, 0.5, 1, 2 | 103 | 74 | 11 | 11 | 30 | 53 | 15 | 6 | 6 | 68 | 24 | M3x5DP | 20000 |
| DRWPL-II / 5, 10, 20, 50 | 160 | 92 | 30 | 30 | 50 | 68 | 25 | 15 | 15 | 82 | 40 | M4x8DP | 10000 |
| DRWPL-III / 50, 100, 200, 300 | 205 | 105 | 45 | 45 | 77 | 95 | 40 | 26 | 26 | 95 | 68 | M4x8DP | 5000 |
| DRWPL-IV / 500, 1000, 1500 | 310 | 126 | 85 | 85 | 120 | 112 | 52 | 45 | 45 | 105 | 105 | M6x10DP | 1900 |
All dimensions are in mm.
V16.08.2023
Due to our policy on ongoing development, dimensions and specifications may change without notice.
