Shaft type Brushless Rotary Torque Sensor

Accurate and Maintenance-Free, with Built-In Signal Conditioning

DRVL High Accuracy Brushless Rotary Torque Transducer

DRVL Shaft type Brushless Rotary Torque Sensor with Optional Base

❮❯

Typical Lead Time

6 weeks

Prices From

£3,230

(excl. VAT)

Buy Online!

Accelerated delivery available

Quantity, OEM & educational discounts

3D CAD models available

Datasheet 3d Model Frequently Asked Questions

At a Glance

Capacities: 0-0.02Nm to 0-20kNm
Supply Voltage Range: 10-28.8Vdc
±10Vdc Voltage Output
10 kHz ± 5 kHz (RS422) Output Frequency
Non-Linearity: <±0.1%/Rated Capacity (<±0.05% Optional)
Optional Speed & Angle Outputs
Max Speed: 37,000 rpm (depending on capacity)
Customised Couplings Available

Maintenance-Free Thanks to its Non-Contact Technology
Compatible with the Previous DRFL
Integrated Signal Amplifier
PLC Compatible for Better Evaluation
Enhanced Overvoltage Prevention
Versatile 2 Standard Signals 10V and 10kHz ± 5kHz
Fast and Simple Installation with a Variety of Mounting Options
Optimum Performance Guaranteed with Specially Designed Couplings
Improved Electromagnetic Compatibility (EMC)

Description

The DRVL non-contact torque sensor series manufactured by ETH Messtechnik in Germany builds on the existing DRFL series with some significant improvements. Its integral signal conditioner now outputs 2 standard signals of (10V and 10kHz ± 5kHz) with a bandwidth of 200Hz as standard, while a conditioner with a 1kHz bandwidth is optional.

The output level for speed and angle signals can now be adjusted from 5V up to 24V making it compatible with PLC acquisition units and many more evaluation devices.

Accuracy is guaranteed to <±0.1% of the rated capacity and there are also higher accuracy versions available to <±0.05%.

They feature extended surge tests to ensure better electromagnetic compatibility protecting the sensor from unwanted electromagnetic interference and damage.

The DRVL series non-contact torque sensors are directly compatible with the established DRFL making installation fast and simple. They can also be supplied with optional base and customised couplings to ensure that you achieve the best possible torque measurement whilst making the task of installation as straightforward as possible.

Request a quotation from our technical sales team.

Technical Specifications

Product Dimensions

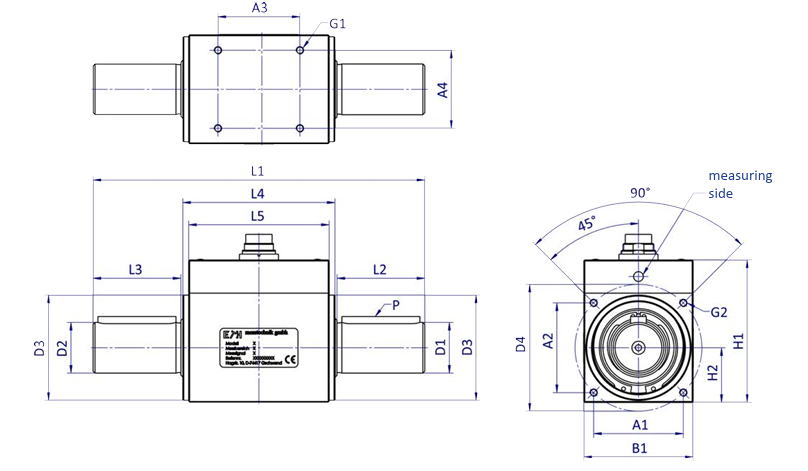

DRVL Non-Contact Torque Sensor Outline Drawing

Model	DRVL	DRVL-I		DRVL-Ib	DRVL-II	DRVL-III	DRVL-IV	DRVL-V	DRVL-VI
Torque	0,02	0,05	2	1	5	50	500	2000	10
Ranges	0,05	0,1		2	10	100	1000	3000	15
(± 0 - ... Nm)	0,1	0,2		5	20	150	1300	4000	20
		0,5		10	30	200	1500	5000
		1			50	300
Dimensions:	(other ranges upon request; General tolerances DIN 2768-m)
L (mm)	82	89	95	110	145	170	270	320	355
B (mm)	32	28		36	42	56	88	105	168
B1 (mm)	24	(→ LK)		(→ LK)	(→ LK)	(→ LK)	(→ LK)	(→ LK)	--
H (mm)	47	54		58	58	73	104	121	185
H1 (mm)	14	14		18	21	28	44	52,5	84
H2 (mm)	22	(→ LK)		(→ LK)	(→ LK)	(→ LK)	(→ LK)	(→ LK)	--
Ø D1 g6 (mm)	3	8	8	10	15	26	45	70	110
Ø D2 g6 (mm)	3	5	6	10	15	26	45	70	110
Ø D3-0,1 (mm)	15	27		32	38	54	80	--	--
Ø LK ± 0,1 (mmm)	(→ B1/H2)	32		38	46	65	98	--	--
L1	63	62		68	79	72	84	95	121
L2	7,5	11	14	18	30	45	85	110	115
L3	7,5	10	14	18	30	45	85	110	115
L4	67	66		72	83	78	90	--	--
A1	50	40		56	60	42	46	75	91
A2	24	22		24	32	40	70	85	138
M1	M2,5 x 5 deep	M3 x 5 deep		M3 x 6 deep	M3 x 6 deep	M4 x 8 deep	M6 x 12 deep	M8 x 16 deep	M10 x 16 deep
M2	M2,5 x 5 deep	M3 x 6 deep		M3 x 6 deep	M3 x 6 deep	M4 x 8 deep	M6 x 12 deep	--	--
P (DIN 6885) optional*	--	--		2xA3x3x14	2x A5x5x25	2x A8x7x40	4xA14x9x80	4x A20x12x100	--
Weight (g)	200	170		340	600	1300	4500	11500	33000
Max RPM	20000	37000		26000	19000	13500	7900	6300	4000
*Note: When supplied with this option, DRVL-IV & DRVL-V have 2x keyways at each end of the shaft positioned 180º apart.

Optional Mounting Base

The DRVL can be offered with an optional base for a simpler assembly and installation.

Model	DRVL	DRVL-I		DRVL-Ib	DRVL-II	DRVL-III	DRVL-IV	DRVL-V	DRVL-VI
Torque Ranges	0,02	0,05	2	1	5	50	500	2000	10
(± 0 - ... Nm)	0,05	0,1		2	10	100	1000	3000	15
	0,10	0,2		5	20	150	1300	4000	20
		0,5		10	30	200	1500	5000
		1			50	300
Dimensions:	(other ranges upon request; General tolerances DIN 2768-m)
L (mm)	82	89	95	110	145	170	270	320	355
B (mm)	56	60		78	78	98	158	208	298
B1 (mm)	32	28		36	42	56	88	105	168
B2 (mm)	24	(→ LK)		(→ LK)	(→ LK)	(→ LK)	(→ LK)	--	--
H (mm)	78	85		85	82	90	172	228,5	316
H1 (mm)	45	45		45	45	45	112	160	215
H2 (mm)	12	12		15	15	15	20	30	40
Ø D1 g6 (mm)	3	8	8	10	15	26	45	70	110
Ø D2 g6 (mm)	3	5	6	10	15	26	45	70	110
Ø D3-0,1 (mm)	15	27		32	38	54	80	--	--
Ø LK ± 0,1 (mm)	(→ B2/H3)	32		38	45	65	98	--	--
L1	63	62		68	79	72	84	95	121
L2	7,5	11	14	18	30	45	85	110	115
L3	7,5	10	14	18	30	45	85	110	115
L4	67	66		72	83	78	90	--	--
N1H8 (mm)	6	6		8	8	10	10	10	10
N2 (mm)	2,8	2,8		3,3	3,3	3,3	3,3	3,3	3,3
N3 (mm)	50	50		60	60	60	60	80	100
S1	5,5	5,5		6,6	6,6	9	11	13	17
S2	50	50		50	65	55	65	70	90
S3	44	44		58	58	76	124	156	233
Ø Z E8	4	4		5	5	6	8	10	12
M	M2,5 x 5	M3 x 6		M3 x 6	M3 x 6	M4 x 8	M6 x 12	--	--
P (DIN 6885) optional*	--	--		2x A3x3x14	2x A5x5x25	2x A8x7x40	4x A14x9x80	4x A20x12x100	--
Weight (g)	400	400		600	900	1600	6600	15	43
Max RPM	20000	37000		26000	19000	13500	7900	6300	4000
*Note: When supplied with this option, DRVL-IV & DRVL-V have 2x keyways at each end of the shaft positioned 180º apart.
