    IP69K Draw Wire Position Sensor | Outdoor | K100

    Steam-Jet Protection, Ideal for Wash-Down & Outdoor Applications
    Lead Time
    3 - 4 weeks
    Prices From
    POA
    Accelerated delivery available

    At a Glance

    • Measuring Ranges: 0-1500mm & 0-5000mm
    • Outputs Option: Potentiometer, 4-20mA or 0-10Vdc
    • Environmental Protection: IP69K
    • Non-Linearity: <±0.25% of Full-Scale Output
    • IP69K Dust Tight & Steam-Jet Cleaning Protected
    • Ideal for Outdoor Use & Wash-Down Applications
    • Potentiometer & Analogue Outputs
    • Robust Glass-Fiber Reinforced Plastic Case
    • Compact & up to 5m Range
    • Customised Versions for High Volume Available

    Description

    The IP69K draw wire series K100 is a robust draw-wire sensor designed for outdoor environments and wash-down applications.  They are housed in a dust-tight reinforced glass-fibre plastic enclosure and have a dust-tight and steam-jet cleaning protection to IP69K.  To further ensure their high protection, their durable sensor design with separate drum and spring spaces promises high protection against environmental influences.

    The IP69K draw-wire sensors are compact, have a measuring range of between 0-1500mm up to 0-5000mm and a resolution towards infinity and are available with a 4-20mA, 0-10Vdc conditioned outputs or a direct potentiometer output.

    For a higher measuring range for an industrial environment try the P115 industrial large range draw wire displacement sensor.  Alternatively, if cost is a factor try our low cost OEM MK77 compact mid-range draw wire displacement sensor.

    Micro Epsilon Approved UK Distributor Horizontal

    Technical Specifications

    Product Dimensions

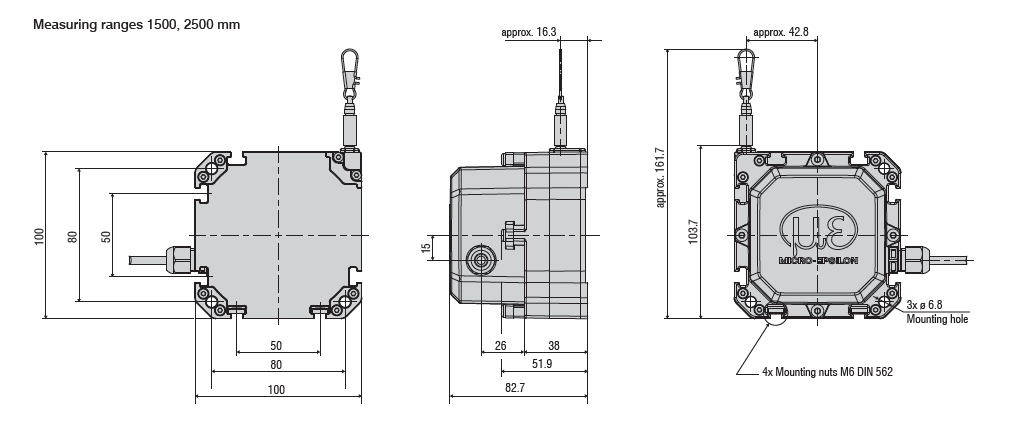

    0-1500, 0-2500mm Dimensions

    K100 IP69K Draw Wire Sensor 0-2300mm Outline
    K100 IP69K Draw Wire Sensor Outline 0-2300mm

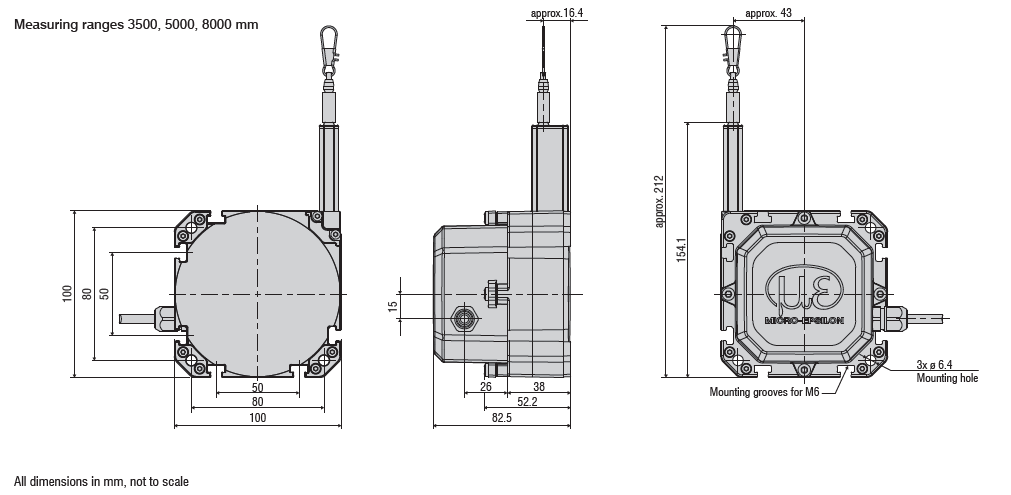

    0-3500, 0-5000m Dimensions

    K100 IP69K Draw Wire Sensor Outline 0-5000mm
    K100 IP69K Draw Wire Sensor 0-5000mm Outline

    All dimensions are in mm.
