    Compact Medium Range Draw Wire Displacement Sensor | Low Cost | MK88

    Compact, Low Cost & Ideal for OEM Applications

    At a Glance

    • Measuring Range: 0-2300mm, 0-3500mm, 0-5000mm Analogue Only
    • Outputs Include: Potentiometer / Voltage / Current
    • Environmental Protection: IP65
    • Non-Linearity: <±0.15% of Full Scale Output
    • Low Cost Ideal for OEM
    • Customised Versions for High Volume Available
    • Analogue Only
    • Potentiometer Output
    • Robust Plastic Housing


    The MK88 compact medium range draw wire displacement sensor is small, low cost and has a measuring range of 0-2300mm, 0-3500mm and 0-5000mm.  They are low cost and customer specific designs makes it ideal for high volume OEM applications.  They feature a robust plastic housing and a very compact design, enabling it to fit into the smallest of spaces.

    The MK88 compact medium range draw wire displacement sensor is analogue only with a non-linearity better than ±15% of the full scale output for the 0-2300mm range.

    For a higher measuring range, please see our MK120 draw wire sensor range.  Alternatively, for a low measuring range try the MK30 subminiature draw wire displacement sensor.

    Micro Epsilon Approved UK Distributor Horizontal

    Technical Specifications

    Product Dimensions

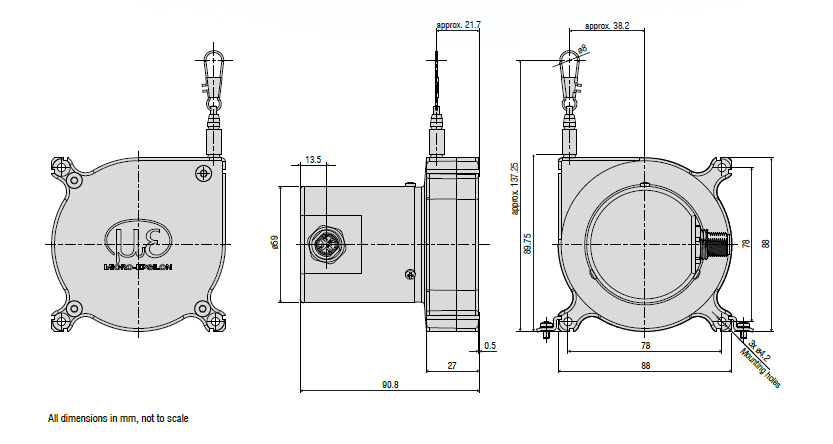

    MK88 Compact Medium Range Draw Wire Displacement Sensor Outline

    All dimensions are in mm
