Combined DSC & DLC Display Module | DS485DIS

At a Glance

Description

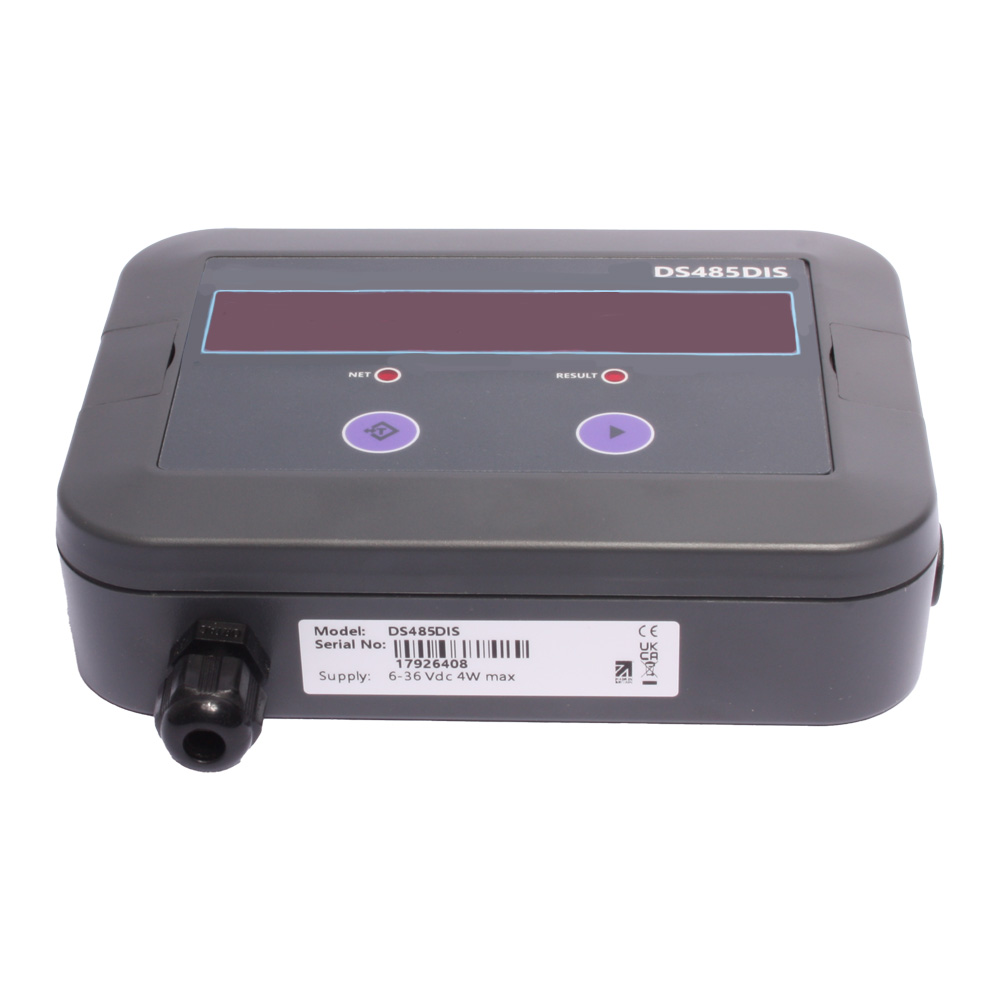

The Applied Measurements DS485DIS is an Digital Signal Convertor LED display module that has been made exclusively for load cells and other transducers that are fitted with the DSC or DCell signal digitiser. The DS485DIS allows up to 8 DSC or DLC (DCELL) MantraBus protocol devices to be connected. The inputs from these devices are then subjected to a range of selectable mathematical functions to provide desired displayed outputs. Summing is one such function, that allow for an overall result to be displayed. Other functions include split set monitoring and multiple sensor displays.

The DS485DIS has several modes. For example in ‘Legacy mode‘ the display can be toggled between gross and a zeroed net display and optionally allows the user to cycle through the individual displays that form the result.

Another example mode is ‘Advance Mode’. Input sets can be configured. This allows two sets to be configured with up to 4 devices per set. Functions and statistics for each set can be configured with an overall result based on the two sets. Regardless of mode, the inputs are all synchronised so the result display is a true representation of the instantaneous input.

This display does require a RS485 interface and the MantraBUS II input protocol to operate. To configure and power the DS485DIS, the device also needs to be connected into a PC via a USB cable.

PC-based configuration of the DS485DIS is very easy to perform using the Instrument Explorer Toolkit software which is downloadable, free of charge.

Example Use Cases

A typical customer will want a DS485DIS for industrial weight measuring. User cases include where you need to know the weight of a silo in real time. The silo will have a number of DS485DIS compatible analogue to digital convertors, each wired into a load cell, that when connected to the DS485DIS will display the total weight of the silo and not just what one load cell might measure.

Another industrial user case would be if you needed to see the weight of two physically separate platforms or silos, at the same time. The DS485DIS is capable of displaying the summed weight from up to 4 connected DSC or DLC devices in each of the two sets.

Technical Specifications

DS485
Supply Voltage	6 to 36Vdc (Note that DSC and DLC accept 18Vdc max)
Current Consumption (no modules connected)	200mA max
Communications Module	RS485 8 data bits, 1 stop bit, no parity
Communications Bus	RS485 port
Configuration Bus	USB Virtual COM port
ENVIRONMENTAL
Storage Temperature	-20 to +70ºC
Operating Temperature	-10 to +50ºC
Relative Humidity	95% maximum non-condensing
Environmental Protection	IP65

Product Dimensions

v1.0

Instrument Explorer Toolkit Software

Please note: this software is for use only with the DS485DIS Combined DSC and DLC display module.

Download the Instrument Explorer Toolkit software below.
