    Industrial LVDT Displacement Transducer | Position Sensor | AML/IE

    Robust, Long Life and Highly Configurable, for Harsh Environments
    Lead Time
    8 weeks
    Prices From
    £234
    (excl. VAT)
    Accelerated delivery available
    Quantity, OEM & educational discounts

    At a Glance

    • Stroke Ranges: ±0.5mm to ±500mm
    • AC mV/V or DC Voltage / Current Output
    • Environmental Protection: IP65
    • Core + Extension, Spring-Loaded & Rod-End Bearing Versions
    • Optional IP68 Submersible &
    • High-Temperature Versions 200°C and 150°C
    • Ideally Suited for Harsh Industrial Environments
    • Fully Submersible & High-Temperature 200°C & 150°C Versions Available
    • Wide Range of Mechanical Configurations to Suit Your Specific Application
    • Fast and Simple Installation – With our wide variety of packaging formats.
    • Long Operating Life – No physical contact between the core and the coils.
    • Let us do the Hard Work for You – We can provide you with a wide range of supporting instrumentation.

    Description

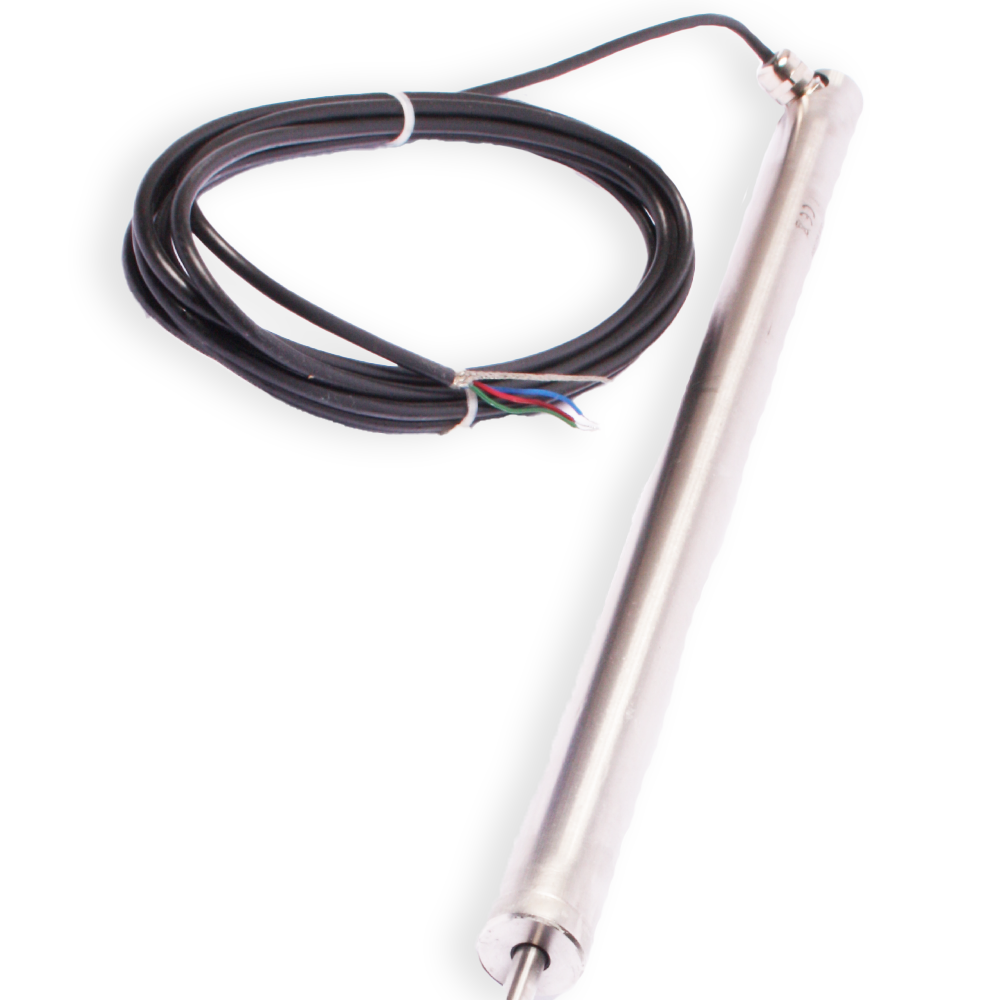

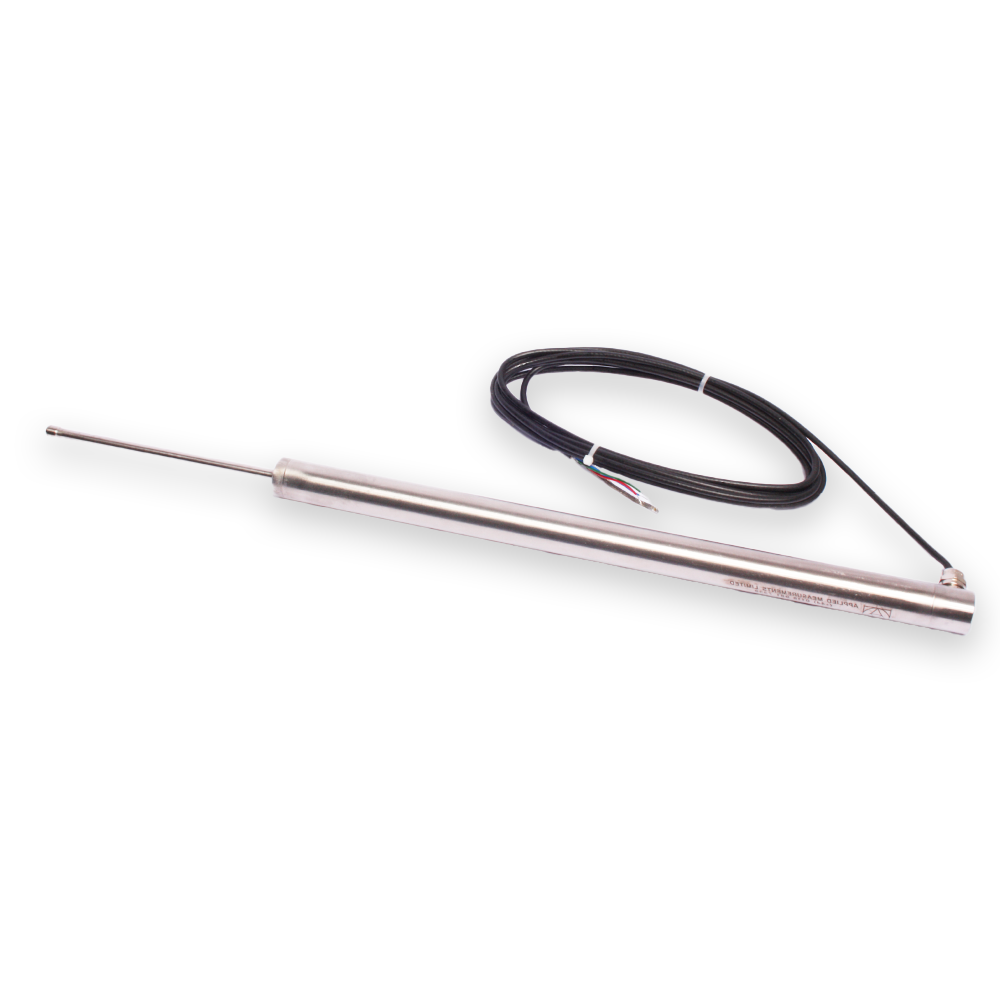

    Applied Measurements AML/IE series of industrial LVDT displacement transducers are available with measuring ranges from ±0.5mm (0-1mm) up to ±500mm (0-1000mm).

    Constructed from stainless steel, the AML/IE LVDTs are sealed to IP65 as standard with the option of IP68 (submersible), making them ideally suited for a multitude of harsh and demanding applications where environmental conditions are humid, wet, dusty or dirty.

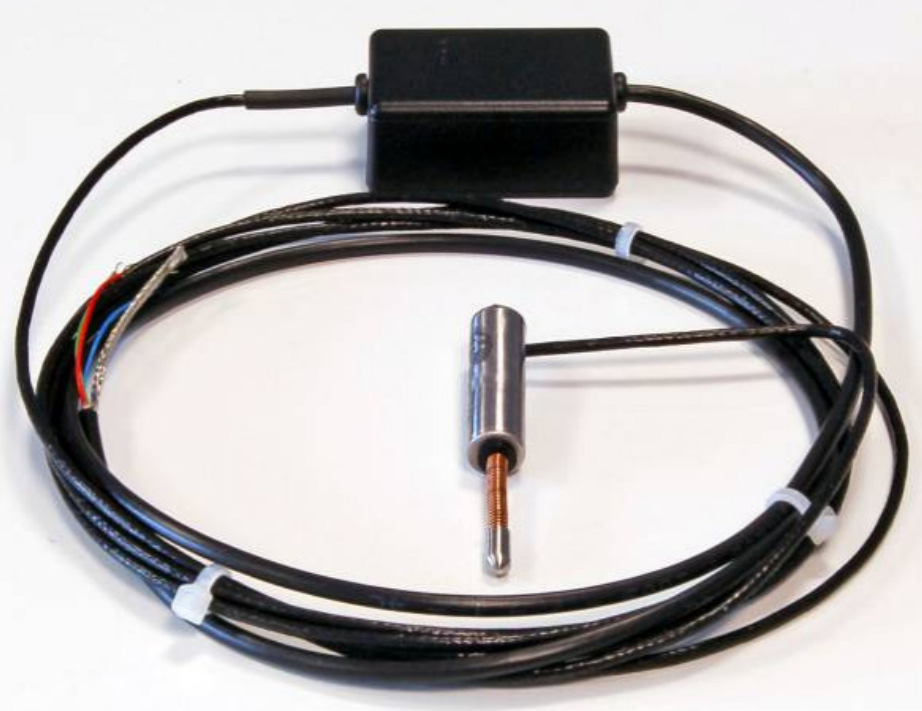

    The basic AML/IE industrial LVDT displacement transducers have an AC mV/V output as standard, with a range of DC voltage signal output options also offered including 0-5Vdc, 0-10Vdc and ±2.5Vdc, as well as a 3-wire 4-20mA current output.

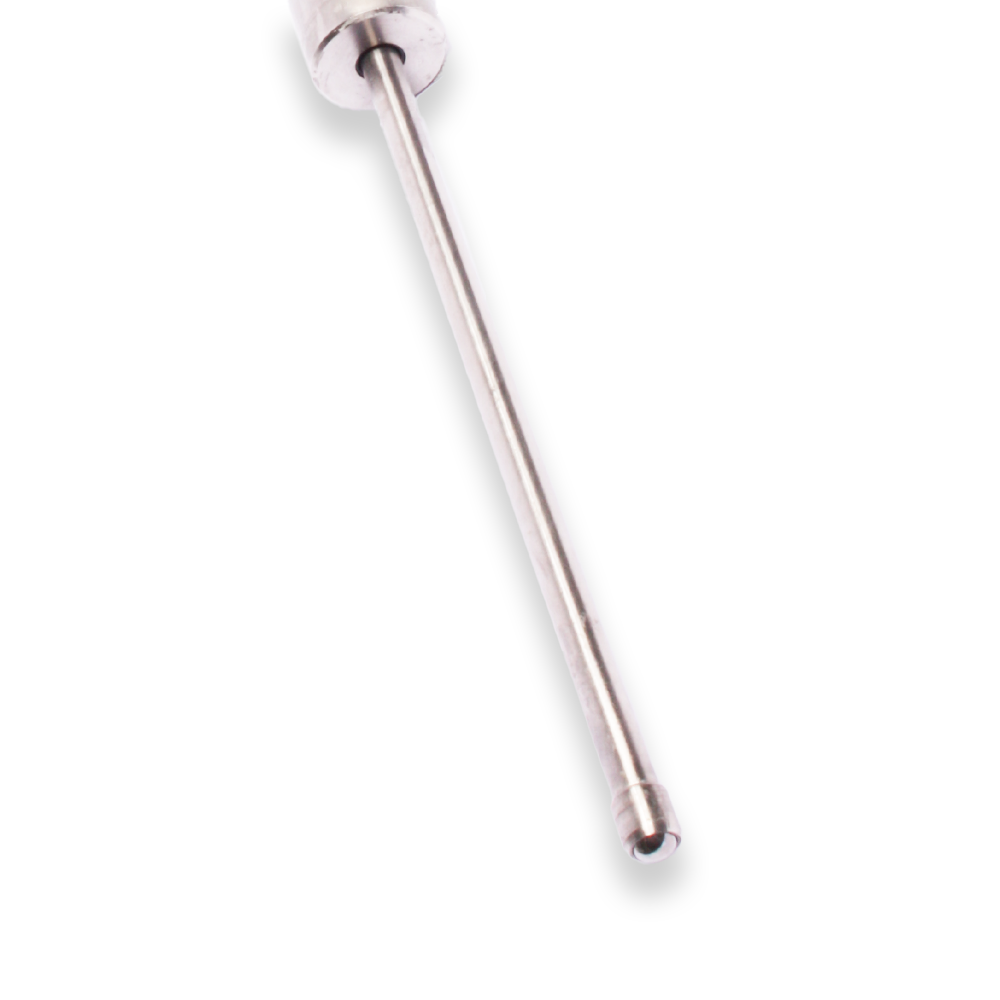

    Applied Measurements AML/IE industrial LVDT offers a choice of mechanical configurations including captive guided core & extension rod, which is standard, plus spring-loaded core & extension rod with ball-end or guided core & extension with spherical rod-end bearings.

    Please see our full range of LVDT displacement transducers and position sensors.  We can also offer a comprehensive variety of supporting instrumentation.  Contact Applied Measurements expert and friendly technical team to discuss your requirements.

    Technical Specifications

    CHARACTERISTICSAML/IEAML/IEJAML/IEUAML/IEU -10AML/IEIAML/IEDUNITS
    Stroke Measurement Range:±0.5, ±2.5, ±5, ±10, ±12.5, ±15, ±25, ±50, ±75, ±100, ±125, ±150, ±175, ±200, ±250
    ±300, ±400, ±500, ±550 (maximum stroke is ±125 for Sprung Loaded Core & Extension)
    millimetres
    Signal Output:See Table Below0-5volt0-10volt4-20mA±2.5volt
    No. of Wires643334
    Supply Voltage (unregulated):2 to 5Vrms @ 1 to 5kHz10-24Vdc14-24Vdc14-24Vdc12Vdc regulated
    Supply Current:-35mA @ 15V35mA @ 15V35mA typ.35mA @ 12V
    Max. Loop Resistance:---300 @ 30V-ohms
    Max. Output Sink Current:-0.51-0.1milliamps
    Non-Linearity:<0.50±%/Rated Output (BFSL)
    Repeatability:<0.10±% Stroke Range
    Output Bandwidth (flat):100Hz
    Output Ripple:-30mV max.30mV max.0.1% @
    20mA
    30mV max.
    Operating Temperature Range:AML/IE & IEJ: -30 to +85 Standard / -30 to +150 and +200 Optional
    -20 to +85 on DC/DC models / 0 to +70 for in-line conditioner (where fitted)
    °C
    Zero Temperature Coefficient:<0.020<0.010±%Stroke Range/°C
    Span Temperature Coefficient:<0.020<0.030±%Stroke Range/°C
    Vibration Resistance:20g up to 2kHz
    Shock Resistance:1000g for 10milliseconds
    Construction Materials:Body & Extension Rod: 303 St/Steel, Core: 416 St/Steel, Cable Gland: Nickel-Plated Brass,
    Spring: 316 St/Steel, Rod-End Bearings: Mild Steel (St/Steel on IP68 version)
    Connecting Cable:2 metre screened PVC cable* (*IP68 = PUR / Hi-Temp = PTFE).
    Environmental Sealing:IP65 (IP68 optional)
    Note: On DC output version (0Vdc / 4mA) is given with the core in the extended / outwards position. This can be reversed if required, please request
    Option Y on your order.

    Product Dimensions

    AC Output, Plain Core & Extension, and Rod Ends Dimensions Table
    Standard
    (Plain Core + Extension)
    Standard and Option ROption R
    (Rod End Bearings)
    Stroke
    (mm)
    Body Length
    (mm)
    Sensitivity @ 3kHz
    with 50K Load
    (mV/V FRO)
    Null
    (mV)
    Primary Resistance
    (ohms)
    Secondary Resistance
    (ohms)
    Body Length
    (mm)
    M6 "L"
    (mm)
    M8 "L"
    (mm)
    ±0.510017520401800100168171
    ±2.51001405130740100168171
    ±5115135548108120188191
    ±10140270570170140208211
    ±12.51601955120190160228231
    ±15175246590190175243246
    ±252352255130210235303306
    ±503202605200270320388391
    ±7539039020260460390458461
    ±1004502405150150450518521
    ±1255002605180320500568571
    ±1505602305210290560628631
    ±1756152602230360615683686
    ±20070028510250430700768771
    ±25081031010290560810878881
    ±3009202705690770920988991
    ±4001150440204501010115012181221
    ±5001410475105501530141014781481
    ±5501410345105501530141014781481
    • AML-IE Industrial LVDT Displacement Transducer AC Version Plain Outline
      AML-IE Industrial LVDT Displacement Transducer AC Version Plain Outline
    • AML-IE Industrial LVDT Displacement Transducer AC Version with M6 Rod End Bearings (R+M6) Outline
      AML-IE Industrial LVDT Displacement Transducer AC Version with M6 Rod End Bearings (R+M6) Outline
    • AML-IE Industrial LVDT Displacement Transducer AC Version with M8 Rod End Bearings (R+M8) Outline
      AML-IE Industrial LVDT Displacement Transducer AC Version with M8 Rod End Bearings (R+M8) Outline
    • AML-IE Armoured Hose
      AML-IE Armoured Hose

    Plain Core + Extension AML-IE Industrial AC Version Options: A = axial cable exit; R = radial cable exit; J = 4-wire device; G = extension rod wiper; W = waterproof IP68; H = high temperature 150°C with PTFE cable; VH = very high temperature 200°C with PTFE cable; Z = armoured hose.

    Option R M6 AML-IE Industrial AC Version with M6 Rod End Bearings Options: R = radial cable exit ONLY; J = 4-wire device; G = extension rod wiper; W = waterproof IP68; H = high temperature 150°C with PTFE cable; VH = very high temperature 200°C with PTFE cable; Z = armoured hose.

    Axial cable exit is NOT available with rod ends unless rod end is on the extension ONLY.

    Option R M8 AML-IE Industrial AC Version with M8 Rod End Bearings Options: R = radial cable exit ONLY; J = 4-wire device; G = extension rod wiper; W = waterproof IP68; H = high temperature 150°C with PTFE cable; VH = very high temperature 200°C with PTFE cable; Z = armoured hose.

    Axial cable exit is NOT available with rod ends unless rod end is on the extension ONLY.

    AC Output, Sprung-Loaded Dimensions Table
    Stroke
    (mm)
    Body Length
    (mm)
    Sensitivity @ 3kHz
    with 50K Load
    (mV/V FRO)
    Null
    (mV)
    Primary Resistance
    (ohms)
    Secondary Resistance
    (ohms)
    Spring Rate
    (N/mm)
    ±0.5100175204018000.2591
    ±2.510014051307400.2591
    ±51151355481080.1457
    ±101602705721380.0833
    ±12.51601955721380.0833
    ±151752465901900.0648
    ±2523522551302100.0530
    ±5032026052002700.0364
    ±75390390202604600.0291
    ±100440240202604600.0233
    ±12552526051452300.0179
    • AML-IE Industrial LVDT Displacement Transducer AC Version Sprung-Loaded (S) Outline
      AML-IE Industrial LVDT Displacement Transducer AC Version Sprung-Loaded (S) Outline

    Option S AML-IE AC Version Sprung Loaded Options: R = radial cable; A = axial cable; J = 4-wire device; G = extension rod wiper; SW = waterproof IP68; H = High Temperature 150°C, Z = armoured hose.

    VH = high-temperature 200°C option not available on spring loaded.

    DC Output Dimensions Table
    StandardOption R (Rod End Bearings)Option S (Sprung-Loaded)
    Stroke
    (mm)
    Body Length
    (mm)
    Body Length
    (mm)
    M6 "L"
    (mm)
    M8 "L"
    (mm)
    Body Length
    (mm)
    Spring Rate
    (N/mm)
    ±0.51301301982011300.1295
    ±2.51401402082111400.1166
    ±51651652332361650.0897
    ±101801802482511800.0729
    ±12.52102102782812100.0614
    ±152252252932962250.0555
    ±252852853533562850.0416
    ±503703704384413700.0291
    ±754404405085114400.0233
    ±1005005005685714400.0233
    ±1255505506186215250.0179
    ±150610610678681n/an/a
    ±175665665733736n/an/a
    ±200750750818821n/an/a
    ±250860860928931n/an/a
    ±30097097010381041n/an/a
    ±4001200120012681271n/an/a
    ±5001460146015281531n/an/a
    ±5501460146015281531n/an/a
    • AML-IE Industrial LVDT Displacement Transducer DC Version Plain Outline
      AML-IE Industrial LVDT Displacement Transducer DC Version Plain Outline
    • AML-IE Industrial LVDT Displacement Transducer DC Version with M6 Rod End Bearings (R+M6) Outline
      AML-IE Industrial LVDT Displacement Transducer DC Version with M6 Rod End Bearings (R+M6) Outline
    • AML-IE Industrial LVDT Displacement Transducer DC Version with M8 Rod End Bearings (R+M8) Outline
      AML-IE Industrial LVDT Displacement Transducer DC Version with M8 Rod End Bearings (R+M8) Outline
    • AML-IE Industrial LVDT Displacement Transducer DC Version Sprung-Loaded (S) Outline
      AML-IE Industrial LVDT Displacement Transducer DC Version Sprung-Loaded (S) Outline

    Plain Core AML-IE Industrial DC Version Options: A = axial cable exit; R = radial cable exit; G = extension rod wiper; W = waterproof IP68 with PU cable; I = 4-20mA output; U = 0-5V output; U-10 = 0-10V output; D = DC bipolar output; Y = reverse output (e.g. 4mA fully in instead of default 20mA); Z = armoured hose.

    H & VH = high temperature options not available

    Option R M6 Rod Ends AML-IE Industrial Version with M6 Rod End Bearings Options: R = radial cable exit only; G = extension rod wiper; W = waterproof IP68 with PU cable and stainless steel M6 rod end bearings; I = 4-20mA output; U = 0-5V output; U-10 = 0-10V output; D = DC bipolar output; Y = reverse output (e.g. 4mA fully in instead of default 20mA); Z = armoured hose.

    H & VH = high temperature options not available

    Option R M8 Rod Ends AML-IE Industrial DC Version with M8 Rod End Bearings Options: R = radial cable exit only; G = extension rod wiper; W = waterproof IP68 with PU cable and stainless steel M8 rod end bearings; I = 4-20mA output; U = 0-5V output; U-10 = 0-10V output; D = DC bipolar output; Y = reverse output (e.g. 4mA fully in instead of default 20mA); Z = armoured hose.

    H & VH = high temperature options not available

    Option S AML-IE Industrial DC Version Sprung Loaded Options:
    R = radial cable exit; A = axial cable exit; G = extension rod wiper; W = waterproof IP68 with PU cable; I = 4-20mA output; U = 0-5V output; U-10 = 0-10V output; D = DC bipolar output; Y = reverse output (e.g. 4mA fully in instead of default 20mA); Z = armoured hose.

    H & VH = high temperature options not available

    Wiring Details

    4-WIRE AC VERSION (PVC OR PTFE, HIGH TEMPERATURE 150˚C AND 200°C)

    WireDesignation
    RedPrimary +ve
    YellowPrimary -ve
    BlueSecondary +ve
    GreenSecondary -ve
    GroundScreen (not connected to sensor body)

    6-WIRE AC VERSION (PVC)

    WireDesignation
    YellowPrimary +ve
    BlackPrimary -ve
    GreenSecondary 1 +ve
    RedSecondary 1 -ve (centre tap)
    WhiteSecondary 2 +ve
    BlueSecondary 2 -ve (centre tap)
    GroundScreen (not connected to sensor body)

    6-WIRE AC VERSION (PTFE, HIGH TEMPERATURE 150°C AND 200°C)

    WireDesignation
    YellowPrimary +ve
    BlackPrimary -ve
    GreenSecondary 1 +ve
    RedSecondary 1 -ve (centre tap)
    BrownSecondary 2 +ve
    BlueSecondary 2 -ve (centre tap)
    GroundScreen (not connected to sensor body)

    3-WIRE DC VERSIONS (4-20MA, 0-5VDC, 0-10VDC, ±2.5VDC)

    WireDesignation
    RedSupply
    Blue0V Common
    GreenSignal
    GroundScreen (not connected to sensor body)

    Ordering Codes & Options

    AML/IEU10+/-500mm-WR0A-0.2-000 (example code)AML/IEU10+/-500mm-WROA-0.2-000
    Product Family
    AML/IEAML/IE
    Electrical Output
    Blank = 6-wire AC mV/VBlank
    J = 4-wire AC mV/VJ
    U = 0-5VdcU
    U10 = 0-10VdcU10
    I = 4-20mAI
    D = ±2.5Vdc (12Vdc regulated supply required)D
    Stroke Range
    +/-0.5mm (0-1mm) +/-0.5mm
    +/-2.5mm (0-5mm) +/-2.5mm
    +/-5mm (0-10mm)+/-5mm
    +/-10mm (0-20mm)+/-10mm
    +/-12.5mm (0-25mm)+/-12.5mm
    +/-15mm (0-30mm)+/-15mm
    +/-25mm (0-50mm)+/-25mm
    +/-50mm (0-100mm)+/-50mm
    +/-75mm (0-150mm)+/-75mm
    +/-100mm (0-200mm)+/-100mm
    +/-125mm (0-250mm)+/-125mm
    +/-150mm (0-300mm)+/-150mm
    +/-175mm (0-350mm)+/-175mm
    +/-200mm (0-400mm)+/-200mm
    +/-250mm (0-500mm)+/-250mm
    +/-300mm (0-600mm)+/-300mm
    +/-400mm (0-800mm)+/-400mm
    +/-500mm (0-1000mm)+/-500mm
    +/-550mm (0-1100mm)+/-550mm
    Mechanical Configuration
    G = Guided Core & Extension Rod-G
    S = Spring Loaded Core & Extension Rod with Ball-Tip (±125mm max range)-S
    SW = IP68 Rated to 5bar/50m with Spring Loaded-SW
    R = M6 Rod-End Bearings - Mild Steel (with Guided Core) (IP65 versions only)-R
    R8 = R8 Rod End Bearings - Mild Steel (with Guided Core) (IP65 versions only)-R8
    M8 = 8mm Core and Extension with M8 Male Thread-M8
    H = 150ºC High Temperature Version with Guided Core (AC only) (DC output requires in-line amplifier @ 70°C max)-H
    HR = 150ºC High Temperature Version with Stainless Steel M6 Rod-End Bearings-HR
    HR8 = 150ºC High Temperature Version with Stainless Steel M8 Rod-End Bearings-HR8
    VH = 200ºC Very High Temperature Version with Guided Core (DC output requires in-line amplifier @ 70°C max)-VH
    VHR = 200ºC Very High Temperature, Stainless Steel M6 Rod End Bearings with Guided Core (AC output only)-VHR
    VHR8 = 200ºC Very High Temperature Version + Stainless Steel M8 Rod End Bearings with Guided Core (DC output requires in-line amplifier @ 70°C max)-VHR8
    W = IP68 Rated - Waterproof/Submersible to 5bar External Pressure (50 metres) with Guided Core + Extension-W
    WR = IP68 Rated with Stainless Steel M6 Rod-End Bearings - Waterproof/Submersible to 5bar External Pressure (50 metres)-WR
    WR8 = IP68 Rated with Stainless Steel M8 Rod-End Bearings - Waterproof/Submersible to 5bar External Pressure (50 metres)-WR8
    For the below configurations please speak to our technical team.
    HS = 150ºC High Temperature Version Spring Loaded Core & Extension Rod with Ball-Tip (±125mm max range) (DC output requires in-line amplifier @ 70°C max)-HS
    HSW = IP68 Rated to 5bar/50m with Spring Loaded 150ºC High Temperature Version Spring Loaded Core & Extension Rod with Ball-Tip (±125mm max range) (DC output requires in-line amplifier @ 70°C max)-HSW
    HRW = 150ºC High Temperature, IP68 Rated with Stainless Steel M6 Rod-End Bearings - Waterproof/Submersible to 5bar External Pressure (50 metres) (AC output only)-HWR
    HR8W = 150ºC High Temperature, IP68 Rated with Stainless Steel M8 Rod-End Bearings - Waterproof/Submersible to 5bar External Pressure (50 metres) (AC output only)-HWR8
    VHRW = 200ºC Very High Temperature, IP68 Rated with Stainless Steel M6 Rod-End Bearings - Waterproof/Submersible to 5bar External Pressure (50 metres) (AC output only)-VHWR
    VHR8W = 200ºC Very High Temperature, IP68 Rated with Stainless Steel M8 Rod-End Bearings - Waterproof/Submersible to 5bar External Pressure (50 metres) (AC output only)-VHWR8
    Output Direction (only affects DC output versions)
    0 = Zero with core extended, Full Scale with core retracted0
    Y = Full Scale with core extended, Zero with core retractedY
    Cable Exit Direction
    A = Axial (not available on rod-end bearing version)A
    R = RadialR
    Cable Length (in metres)
    02 = 2 metres (standard)-2
    0,2 = 0.2 metres-0,2
    10 = 10 metres-10
    02Z = 2 metres Armoured Hose-02Z
    10Z = 10 metres Armoured Hose-10Z
    Specials Code
    000 = No Special Requirements-000
    021 = Extension Rod Wiper-021

    Instant Price & Part Code Builder

    You can now buy this product in our online shop. Alternatively, you can find the ordering code, price* and lead time below.

    • Product Details

    • Price*
    • Lead Time
    • Part Code

    *Please note: The prices shown are valid in the UK only and do not include carriage charges. For overseas pricing please contact a member of our sales team or your local distributor.

    Send me this information

      Enter your email address to receive a copy of this information


      Case Studies

      Fabric Tensile Strength Tester Rig Frame

      Universal Fabric Tension Tester for All Fabrics and Styles

      The Challenge - Accurately Measure Fabric Tension on Any Style of Furniture. Fabric strength testing guarantees the fabric being used on furniture meets the high quality needed for durability, comfort and support. Choosing the wrong type of fabric can lead to fabric tearing, loss of customer satisfaction and a decrease in sales and profit. Find out how our miniature s-beam load cell, intuitive4-L digital indicator and industrial LVDT displacement sensors were used to determine fabric strength.

      Read more...

      Interested in this product? Send us an enquiry...

        Quick Enquiry


        Why Applied Measurements?

        • Suppliers of top quality strain gauge sensors and transducers to every corner of industry - UK and worldwide
        • Over 100 years of expert transducer knowledge
        • Our high quality products all come with a 3 year warranty
        BSI Assurance Mark ISO 9001:2015 FS677584
        We Are a Living Wage Employer
        Cyber Essentials Certified
