    Industrial Low Range Draw Wire Displacement Sensor | P60

    Robust & Accurate Low Range Measuring
    P60 Industrial Low Range Draw Wire Displacement Sensor

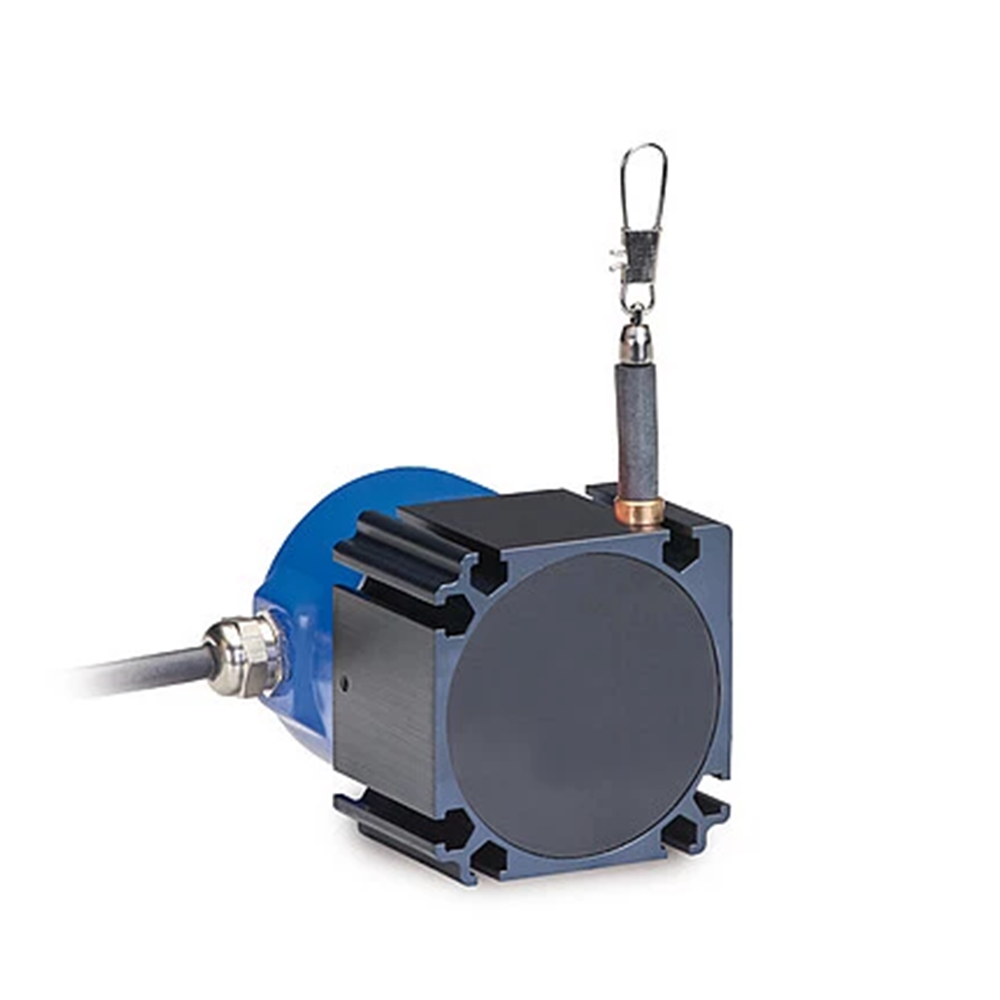

    P60 Draw Wire Side View
    P60 Industrial Low Range Draw Wire Displacement Sensor

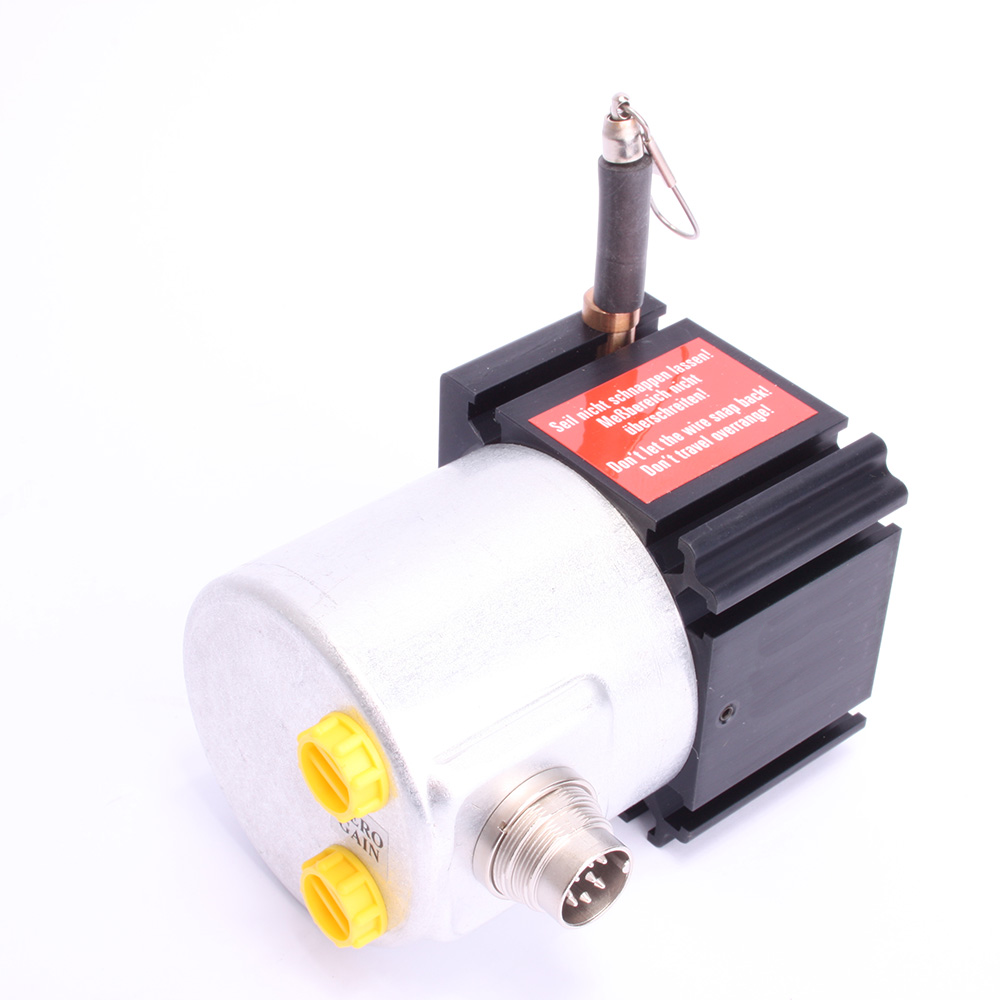

    P60 Draw Wire Side View
    360° View Videovideo/mp4
    Typical Lead Time
    4 weeks
    Prices From
    £350
    (excl. VAT)
    Accelerated delivery available

    At a Glance

    • Measuring Range: 0-100mm up to 0-1500mm
    • Outputs Include: Potentiometer / Voltage / Current / Incremental / Absolute Encoder
    • Environmental Protection: IP65
    • Non-Linearity:
      <±0.02% of Full Scale Output (Digital)<±0.5% to <±0.1 of Full Scale Output (Analogue, range-dependent)
    • Robust Aluminium Case
    • Analogue and Digital Options
    • Potentiometer, Voltage and Current Output
    • Absolute or Incremental Encoder Versions
    • Customised Versions for High Volume Available

    Description

    The P60 industrial low range draw wire displacement sensor has a measuring range of between 0-100mm up to 1500mm.  They are housed in a robust aluminium enclosure and have a dust-tight and watertight protection to IP65.  The P60 series of industrial draw wire sensors also feature mounting grooves giving them greater flexibility of use in harsh industrial environments.

    The P60 industrial low range draw-wire displacement sensor 0-100mm and 0-150mm is available as a wire or conductive plastic sensing element, whilst the 0-300mm up to 0-1500mm is available as a hybrid potentiometer.  Both sensing elements offer a resolution towards infinite.

    Both a digital and analogue output versions are available for greater flexibility.  Both absolute and incremental encoder options have a significantly longer service life and better linearity of ±0.02% of full-scale output compared to analogue potentiometers.

    Incremental encoders are used where the relative position displacement should be measured. In contrast, an absolute encoder assigns a unique position value to each measured value.

    For a higher measuring range for an industrial environment try the P115 industrial large range draw wire displacement sensor.  Alternatively, if cost is a factor try our low cost OEM draw wire sensors.

    If you need an outdoor draw wire sensor, try our IP69k rated draw wire sensor.

    Accurate measurement of the position of the piston is essential, which is why we chose the P60 industrial draw-wire sensor,

    Jon Willis, Crofton Beam Engines Industrial Low Range Draw Wire Displacement Sensor | P60 January 13, 2020

    Micro Epsilon Approved UK Distributor Horizontal

    Technical Specifications

    Product Dimensions

    Measuring Range (mm)A (mm)
    0-100, 0-300, 0-500, 0-100016.15
    0-150, 0-750, 0-150024.2
    P60 Industrial Low Range Draw Wire Displacement Sensor Analogue Potentiometer Outline
    P60 Industrial Low Range Draw Wire Displacement Sensor Analogue Outline
    P60 Industrial Low Range Draw Wire Displacement Sensor Digital HTL TTL SSI Outline
    P60 Industrial Low Range Draw Wire Displacement Sensor Digital CO PB Outline

    Downloads

    Other Downloads

    Case Studies

    P60 draw wire sensor on beam engine

    State-of-the-Art Sensors for Oldest Working Beam Engine in the World

    The Boulton and Watt steam engine, originally installed in 1812, is the oldest working beam engine in the world. It is on this 200-year-old steam engine that engineers want to install the latest state-of-the-art sensors and instrumentation to monitor position, speed and acceleration of the piston. This Mechatronics Project - 'marrying 200 years of technology' - has 5 main aims.

    1. To understand the impact on the engine when running at full load.
    2. To explore engine efficiency.
    3. To illustrate to visitors the internal workings of the engine in real-time.
    4. To display information to less-able visitors unable to climb the stairs.
    5. To provide data for educational and research projects at all levels.
    Read how they monitored the position of the piston.

    Read more...
