Wireless Load Shackle | Link Load | SLC24

Wireless, Robust and Includes an 8 Digit LCD Handheld Display

  • Lead Time: 4 weeks

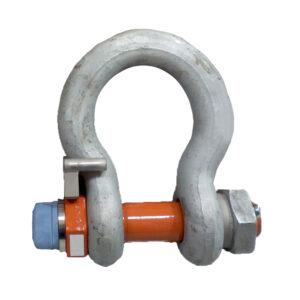

SLC24 Bow Type Wireless Load Shackle

At a Glance

  • Capacities: 0-12te to 0-1000te
  • Includes Wireless Handheld Digital Indicator
  • Environmental Protection: IP67
  • Shackle & Load Pin Fully Certified
  • Optional Load Centralising Bobbin
  • Up to 100 Load Cells Simultaneously
  • Wireless Signal Transmission – No Cables
  • Up to 300 Hours Battery Life
  • Transmission Distance up to 600m
  • Rugged Construction – High Tensile Carbon Steel
  • Optional Load Centralising Bobbin – For Optimum Performance
  • IP67 Protection Rating for Submersion up to 1 metre in Water
  • Ideal in Multi-Point Lifting Applications – up to 100 load cells!

Description

The SLC24 bow type wireless load shackle series are specially designed for cable-free lifting and weighing applications. They have up to 300 hours of battery life  (continuous use with 1.2Ah batteries) and can transmit data up to 600 metres away (clear line of sight). To ensure optimum transmission range the externally sealed aerial can be rotated. The load cell shackles are manufactured using the Crosby™ G2130 (12 to 25 tonnes), G2140 (40 to 120 tonnes) shackles and GN Rope H10 shackle (150 to 1000 tonnes).

The SLC24 bow type wireless load shackles are constructed from high tensile carbon steel and come with an IP67 protection rating for submersion up to 1 metre in water, making them ideal for both rugged and harsh environments.

Power is supplied by 2 x AAA NiMh batteries which can be recharged using the supplied universal charger. Plus, thanks to the units no-tool opening housing, battery changing is quick and easy to do on-site, while the internal electronics remain completely sealed.

For a complete load monitoring system, the SLC24 bow type wireless load cell shackle is supplied with a T24-HS simple handheld battery powered display. This 8 digit display is for use with a single telemetry acquisition module.

For multiple acquisition modules we can offer a T24-HA advanced handheld telemetry display for 12 separate inputs. If you need more inputs we can offer a PC-based monitoring system capable of monitoring and recording live data from up to 100 load shackles simultaneously!

Technical Specifications

UNITSSLC24
Rated Loadtonnes0-12, 0-17, 0-25, 0-40, 0-55, 0-85, 0-120, 0-150, 0-200, 0-300, 0-400, 0-500, 0-600, 0-700, 0-800, 0-900, 0-1000
Operating ModesTension Only
Non-Linearity±%/Rated Load (typically)<1
Non-Repeatability±%/Rated Load<0.1
Transmission Distancemetresup to 600 (clear line of sight)
Battery Lifehours300 (continuous use with 1.2Ah batteries)
Battery2 x AAA Alkaline (supplied with 1.2Ah batteries) Internal rechargeable NiMh
Battery ChargingBatteries can be removed from case for recharging
Operating Temperature Range˚C-20 to +60
Safe Overload% of Rated Load150
Ultimate Overload% of Rated Load300
Safety Factor:3:1
IP Rating (Environmental Protection)IP67
Weight (excluding cable)kgsee dimensional table

Product Dimensions (Ranges 12 to 120 tonnes)

SLC24 Bow Type Wireless Load Shackle Outline Diagram
Rating
(tonnes)
AØBCDEØFHLNPWeight
(kgs)
Resolution
(tonnes)
0-1251.535.111931.882.57621014635.117180.01
0-1760.541.414638.198.59225417541.1201120.02
0-25735117844.512710631322557236180.02
0-4073.250.817846.712710631322457.2236180.05
0-5582.657.219752.814612234725861269250.05
0-8510569.926768.818414845532479.2351450.1
0-12012782.633079.220016554637192.2387850.1
0-15013395.337295.32292036324321054481250.1
0-20018412138695.32792677065291275802150.2
0-3002131524701273303308716291546103640.2
0-40025517568016532535010786551657005600.5

All dimensions are in mm

Product Dimensions (Ranges 150 to 1000 tonnes)

SLC24 wireless load shackle 150 to 1000 tonnes
Rating
(tonnes)
AØBCDEØFHLPWeight
(kgs)
Resolution
(tonnes)
1501701084001022752306714794751600.1
2001801255001202902608135305202350.2
2502051405401253052608655555602850.2
3002051506001303053059585655703400.5
40023017568016532535011086556555600.5
50025518570018035037011587107206850.5
60028520570019537540512007658158800.5
70031021770020540043512318108609801
800310217700210400435123682087011001
900330230700220420465126886091012801
1000350240750230420480129088095014601

All dimensions are in mm

Ordering Codes & Options

Core ProductCapacity (inc Engineering Units)Cable Length (m)Specials CodeExample Result
SLC2412t000000SLC24-12t-000-000
SLC2417t000000SLC24-17t-000-000
SLC2425t000000SLC24-25t-000-000
SLC2440t000000SLC24-40t-000-000
SLC2455t000000SLC24-55t-000-000
SLC2485t000000SLC24-85t-000-000
SLC24120t000000SLC24-120t-000-000
SLC24150t000000SLC24-150t-000-000
SLC24200t000000SLC24-200t-000-000
SLC24300t000000SLC24-300t-000-000
SLC24400t000000SLC24-400t-000-000
SLC24500t000000SLC24-500t-000-000
SLC24600t000000SLC24-600t-000-000
SLC24700t000000SLC24-700t-000-000
SLC24800t000000SLC24-800t-000-000
SLC24900t000000SLC24-900t-000-000
SLC241000t000000SLC24-1000t-000-000
