At a Glance
- Increases Transmission Range
- Compact
- Robust
- Ideal for When You Need Enhanced Transmission Range
- Weatherised External Antennas
- 3 Designs to Suit Your Specific Requirements
- Operates in Temperatures as low as -40°C to +95°C to suit Harsh Environments
Description

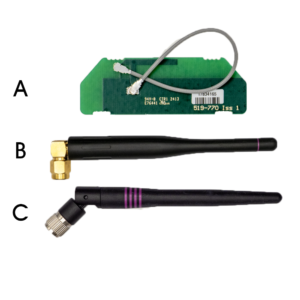

There are the three options of the wireless telemetry transmitter antennas available for T24 telemetry acquisition modules that are fitted with a UFL connector (models with the ‘e’ option, i.e. T24-SAe). The three options are:
- T24-ANTA: PCB antenna designed to be fitted inside a plastic enclosure.
- T24-ANTB: Whip antenna with fixed 90 degree elbow for external mounting.
Operating Temperature: -20°C to +85°C - T24-ANTC: Whip antenna with variable angled elbow for external mounting.
Operating Temperature: -40°C to +90°C
Please contact our expert sales team using the form in the sidebar, call us on +44 (0) 1189 817339, or send an email to info@appmeas.co.uk and we will be happy to assist you with your enquiry.
Technical Specifications
| Environmental | Min | Typical | Max | |
|---|---|---|---|---|
| Operating Temperature Range | -20 | - | 85 | °C |
| Storage Temperature Range | -40 | - | 85 | °C |
| Humidity | 0 | - | 95 | %RH |
| CE Environmental Approvals | European EMC Directive 2004/108/EC | |||
| Low Voltage Directive 2006/95/EC | ||||
Product Dimensions
Ordering Codes & Options
| T24-ANTA | Antenna for OEM PCB ‘e’ variants only (PCB) |
|---|---|
| T24-ANTB | Antenna for OEM PCB ‘e’ variants only (Whip) |
| T24-ANTC | Antenna for OEM PCB ‘e’ variants only (Swivel) |
| T24-ANTD | Antenna for OEM PCB ‘e’ variants only (Puck, 0.6 m cable) |
| T24-ANTE | Antenna for OEM PCB ‘e’ variants only (Puck, 100 mm cable) |
